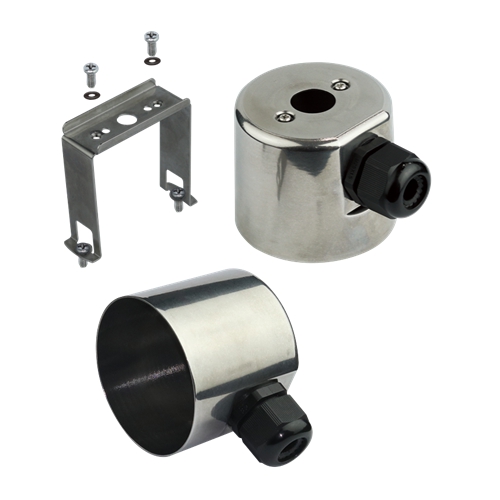

Type: Y3K2

Round, large diameter, simplified immersion heater enclosure

Deep drawn enclosure for moderately corrosive media, in stainless steel AISI 304 or AISI 316.
These enclosures provide a good compromise between impact resistance, weather resistance and chemicals, they are non-flammable and have a maximum IP69K degree of ingress protection
size(mm): Dia. 86 x 72, Volume(cm3): 390.

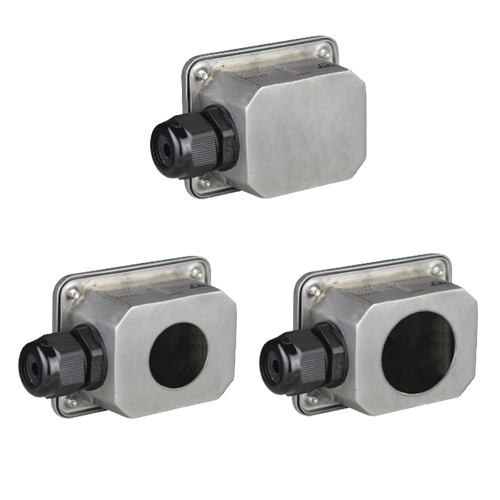

Type: Y3L1

Miniature enclosure for temperature sensor or level sensor

Deep drawn enclosure for moderately corrosive media, in stainless steel AISI 304 or AISI 316. These enclosures provide a good compromise between impact resistance, weather resistance and chemicals, they are non-flammable and have a maximum IP69K degree of ingress protection, Size(mm): Dia. 75 x 60 x 44, Volume(cm3): 111.

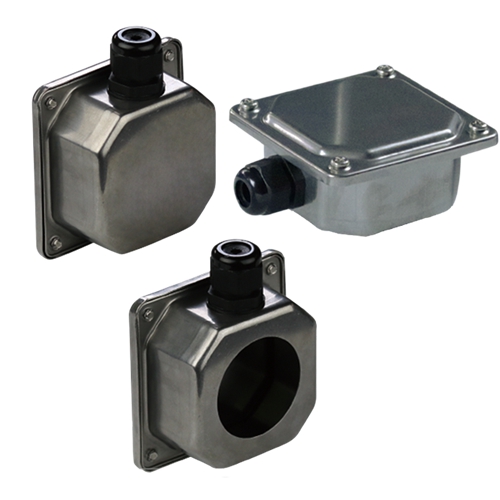

Type: Y3L3

Miniature enclosure for immersion heater, temperature sensor or level sensor

Deep drawn enclosure for moderately corrosive media, in stainless steel AISI 304 or AISI 316, these enclosures provide a good compromise between impact resistance, weather resistance and chemicals, they are non-flammable and have a maximum IP69K degree of ingress protection, Size(mm): Dia. 90 x 90 x 45, Volume (cm3): 206.

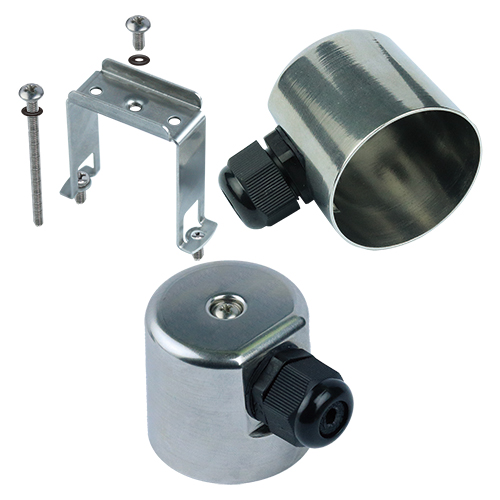

Type: Y3K1

Round miniature simplified immersion heater enclosure

Deep drawn enclosure for moderately corrosive media, in stainless steel AISI 304 or AISI 316, these enclosures provide a good compromise between impact resistance, weather resistance and chemicals, they are non-flammable and have a maximum IP69K degree of ingress protection, Size(mm): Dia. 54 x 50, Volume(cm3): 105.

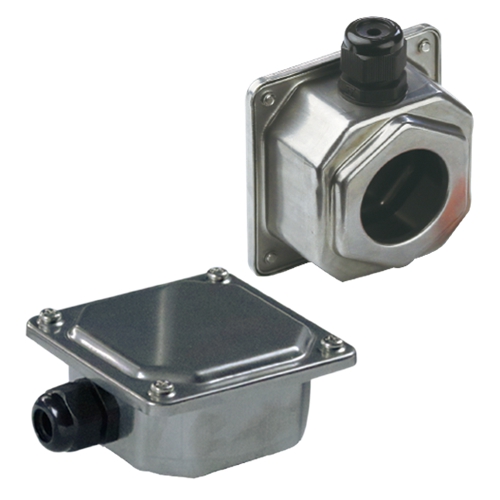

Type: Y3L4

Enclosure for small storage heater immersion heater

Deep drawn enclosure for moderately corrosive media, in stainless steel AISI 304 or AISI 316. These enclosures provide a good compromise between impact resistance, weather resistance and chemicals, they are non-flammable and have a maximum IP69K degree of ingress protection. Size (mm): Dia. 90 x 90 x 52. Volume (cm3): 232.

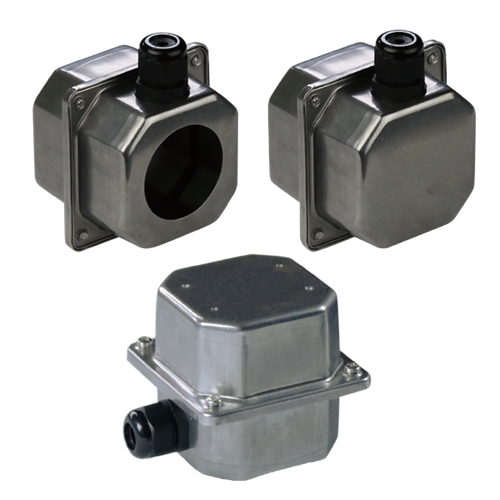

Type: Y3S3

Immersion heater or temperature sensor enclosure

Deep drawn enclosure for moderately corrosive media, in stainless steel AISI 304 or AISI 316. These enclosures provide a good compromise between impact resistance, weather resistance and chemicals, they are non-flammable and have a maximum IP69K degree of ingress protection. Size (mm): Dia. 90 x 90 x 75. Volume (cm3): 392.

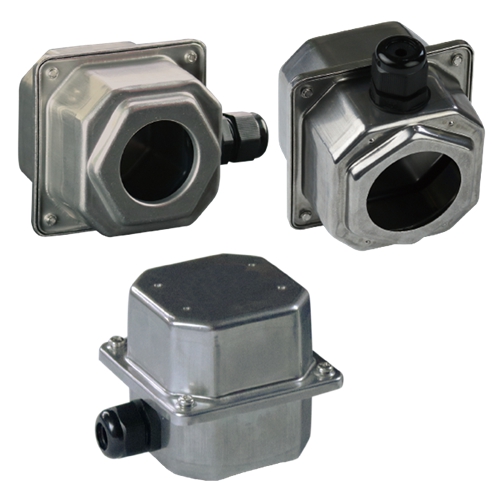

Type: Y3S4

Immersion heater or temperature sensor enclosure

Deep drawn enclosure for moderately corrosive media, in stainless steel AISI 304 or AISI 316. These enclosures provide a good compromise between impact resistance, weather resistance and chemicals, they are non-flammable and have a maximum IP69K degree of ingress protection. Size (mm): Dia. 90 x 90 x 82. Volume (cm3): 418.

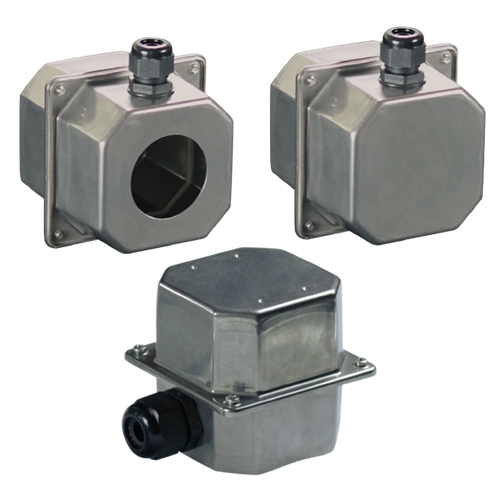

Type: Y3S5

Medium size enclosure for immersion heater or temperature sensor

Deep drawn enclosure for moderately corrosive media, in stainless steel AISI 304 or AISI 316. These enclosures provide a good compromise between impact resistance, weather resistance and chemicals. They are non-flammable and have a maximum IP69K degree of ingress protection. Size (mm): Dia.105 x 105 x 102. Volume (cm3): 757.

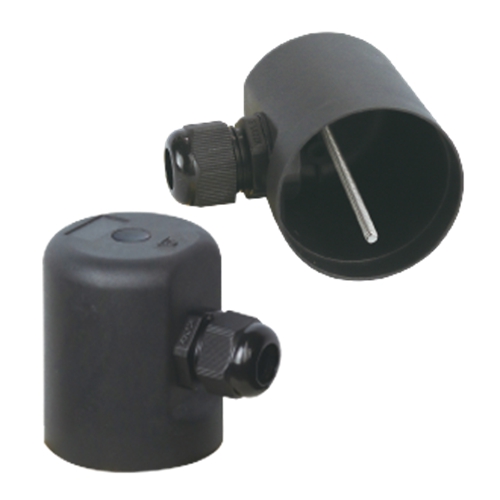

Type: Y302

Simplified immersion heater enclosure for fittings with M4 central screw

Plastic enclosures, these enclosures are in fiberglass reinforced PA66
Size (mm): 54x66
Volume (cm3): 160
Ingress protection: IP69K
Level of impact resistance: IK8
Suitable for: Immersion heater

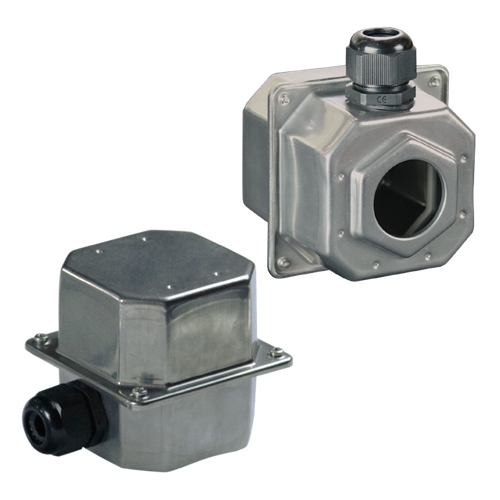

Type: Y3S6

Medium size immersion heater enclosure with built-in hexagon for fitting

Deep drawn enclosure for moderately corrosive media, in stainless steel AISI 304 or AISI 316. These enclosures provide a good compromise between impact resistance, weather resistance and chemicals, they are non-flammable and have a maximum IP69K degree of ingress protection. Size (mm): Dia. 105 x 105 x 110. Volume (cm3): 781.

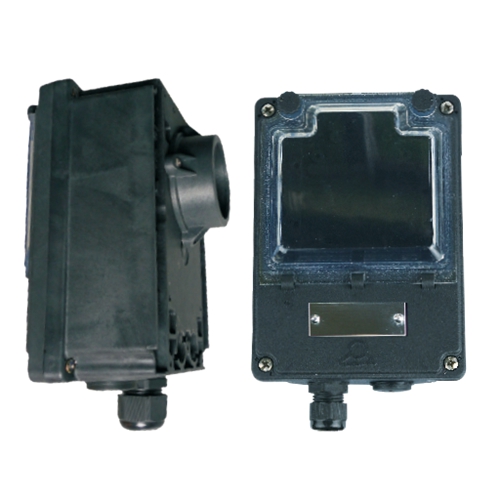

Type: Y3N3

Enclosure with window for immersion heaters, with extension. Body in PA66.

Plastic enclosures, these enclosures are in fiberglass reinforced PA66 + PC.
Size (mm): 130 x 180 x 120.
Volume (cm3): 2093.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Immersion heater, Finned heater, Thermostat, Electronic board.

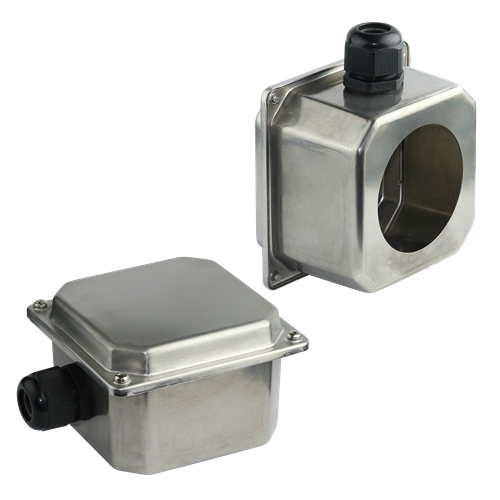

Type: Y3SA

Immersion heater or temperature sensor, flat cover

Deep drawn enclosure for moderately corrosive media, in stainless steel AISI 304 or AISI 316.
These enclosures provide a good compromise between impact resistance, weather resistance and chemicals.
They are non-flammable and have a maximum IP69K degree of ingress protection. Size (mm): Dia. 125 x 125 x 85. Volume (cm3): 970.

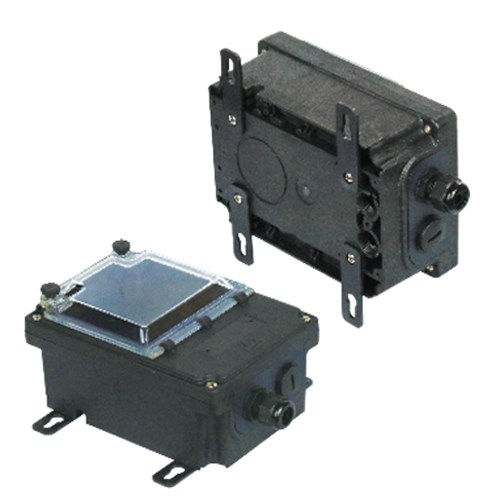

Type: Y3N2

Enclosure with window, for controls, connection, temperature sensor, thermostat, level sensor, GFCI, removable wall mounting legs.

Plastic enclosures, these enclosures are in fiberglass reinforced PA66 + PC.
Size (mm): 130 x 180 x 95.
Volume (cm3): 2010.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Immersion heater, Finned heater, Thermostat, Electronic board.

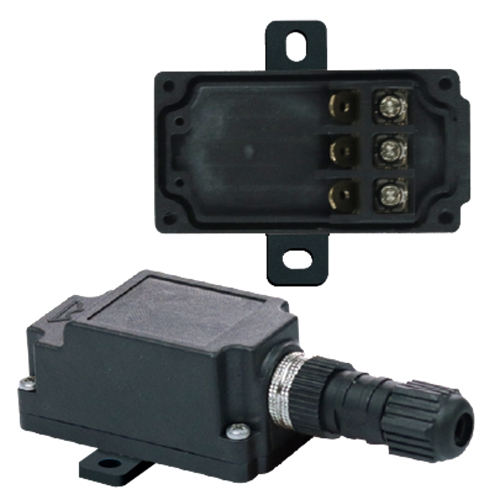

Type: Y3A1

Sub-miniature enclosure for temperature sensor, level sensor, electronic printed circuit or cartridge heater.

Removable wall mounting bracket.

Plastic enclosures, these enclosures are in fiberglass reinforced PA66.
Size (mm): 61 x 33 x 30.
Volume (cm3): 52.
Ingress protection: IPX4.
Level of impact resistance: IK8.
Suitable for: Temperature sensor, Level sensor.

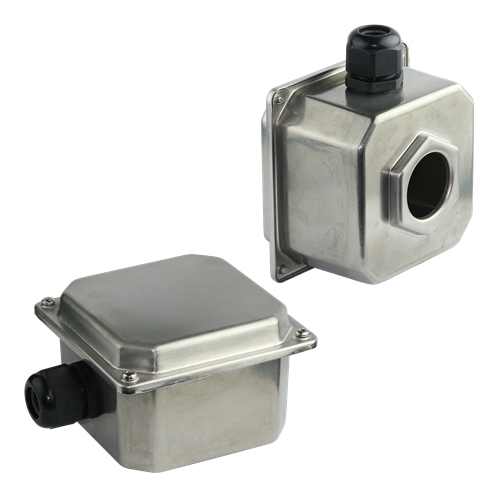

Type: Y3SB

Big immersion heater enclosure, with flat cover and stamped hexagon.

Deep drawn enclosure for moderately corrosive media, in stainless steel AISI 304 or AISI 316.
These enclosures provide a good compromise between impact resistance, weather resistance and chemicals.
They are non-flammable and have a maximum IP69K degree of ingress protection. Size (mm): Dia. 125 x 125 x 93. Volume (cm3): 1000.

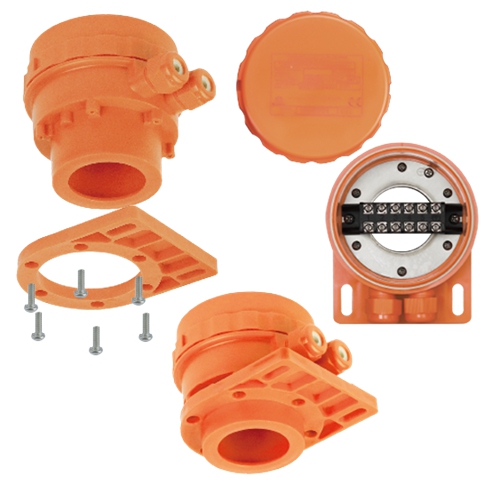

Type: Y3C6

Polypropylene immersion heater enclosure for surface treatment baths

Plastic enclosures, highly corrosive environments. These enclosures are in polypropylene. Plastic terminals can be added. Size (mm): 105x95.
Volume (cm3): 663.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Thermostat, Immersion heater.

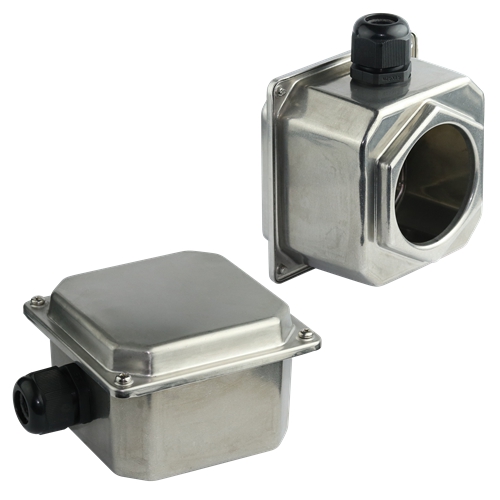

Type: Y3SC

Big immersion heater enclosure, with flat cover and stamped hexagon, for big immersion heaters

Deep drawn enclosure for moderately corrosive media, in stainless steel AISI 304 or AISI 316.
These enclosures provide a good compromise between impact resistance, weather resistance and chemicals.
They are non-flammable and have a maximum IP69K degree of ingress protection. Size (mm): Dia. 125 x 125 x 85. Volume (cm3): 1000.

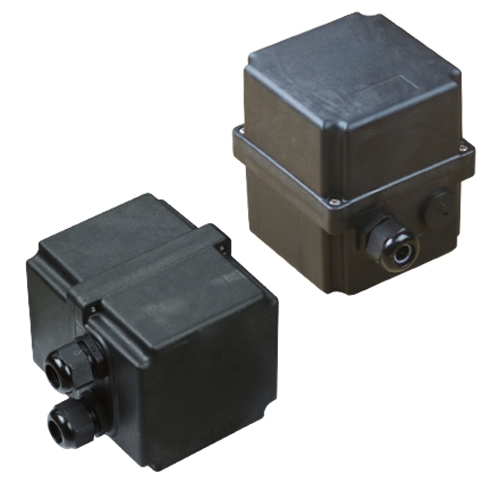

Type: Y307

Big size enclosure for immersion heater, temperature sensor, level sensor or controls.

Plastic enclosures, these enclosures are in fiberglass reinforced PA66.
Size (mm): 130 x 130 x 150.
Volume (cm3): 2530.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Immersion heater, Thermostat, Electronic board.

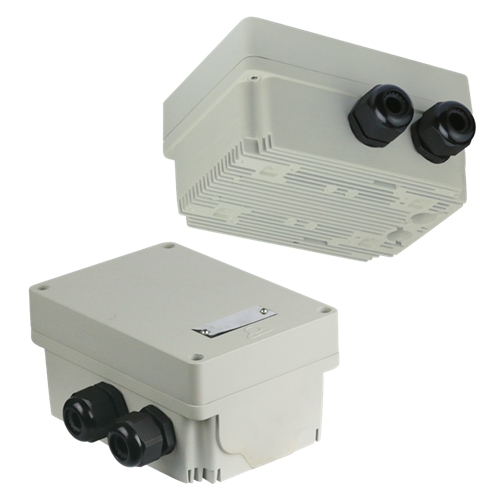

Type: Y3H3

All aluminum enclosure, for immersion heater or solid state relays (SSR) controls

These enclosures are in pressure die cast aluminum.
Size (mm): 96 x 132 x 182.
Volume (cm3): 2050.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Immersion heater, Thermostat.

Type: Y3TB

Big enclosure, for immersion heaters or instruments, with flat cover, for welding on tubes

Deep drawn enclosure for moderately corrosive media, in stainless steel AISI 304 or AISI 316. These enclosures provide a good compromise between impact resistance, weather resistance and chemicals, they are non-flammable and have a maximum IP69K degree of ingress protection. Size (mm): Dia. 125 x 125 x 105. Volume (cm3): 1138.

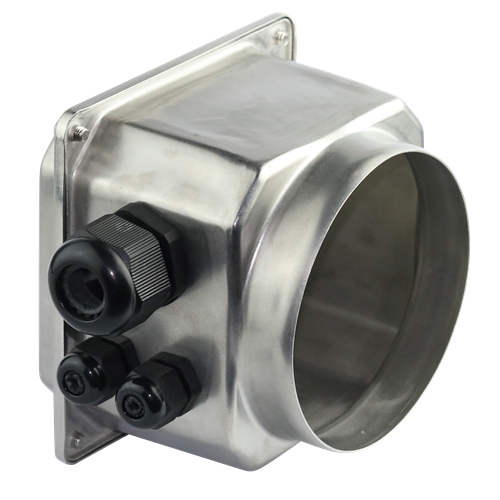

Type: Y3TC

Big enclosure, for immersion heaters or instruments, with flat cover for welding on tubes.

Deep drawn enclosure for moderately corrosive media, in stainless steel AISI 304 or AISI 316. These enclosures provide a good compromise between impact resistance, weather resistance and chemicals, they are non-flammable and have a maximum IP69K degree of ingress protection. Size (mm): Dia. 125 x 125 x 105. Volume (cm3): 1138.

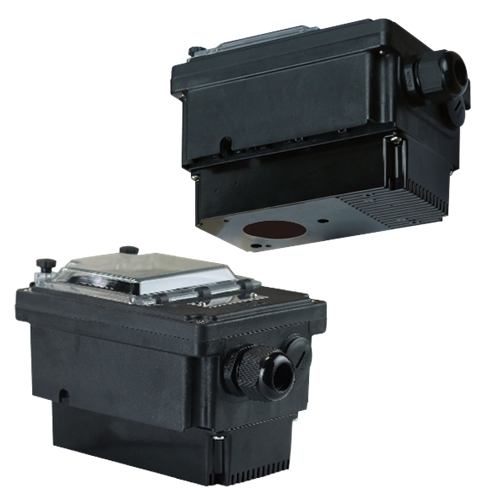

Type: Y3N4

Enclosure with window, for immersion heater

Plastic enclosures, with electronic temperature control with aluminum heat exchanger fins for solid state relay. These enclosures are in fiberglass reinforced PA66 + PC + Aluminum. Size (mm): 130x180 x132.
Volume (cm3): 2580.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: immersion heater, finned heater, thermostat, electronic board.

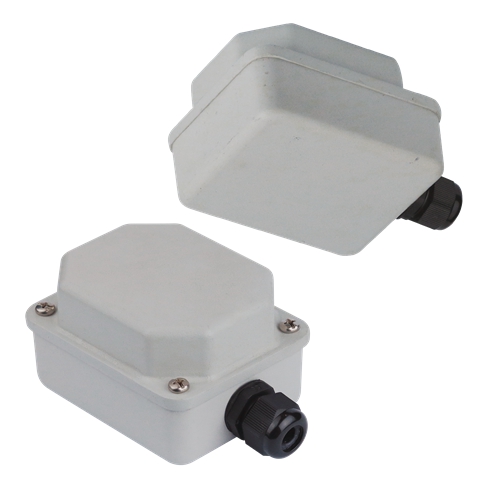

Type: Y3P1

Small size enclosure for immersion heater, finned heaters or controls

These enclosures are in pressure die cast aluminum.
Size (mm): 64x84 x104.
Volume (cm3): 510.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Immersion heater, Finnde heater, Thermostat, Electronic board.

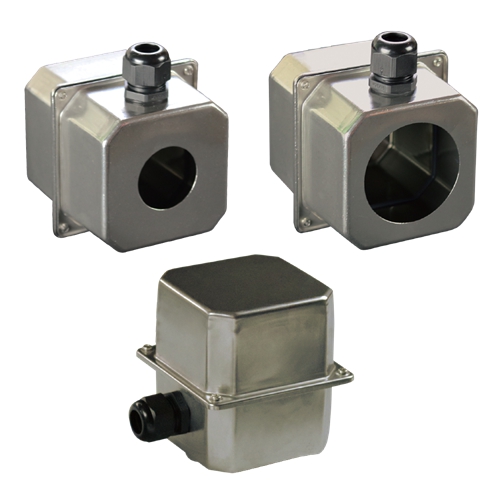

Type: Y3S7

Big size enclosure for immersion heater or temperature sensor

Deep drawn enclosure for moderately corrosive media, in stainless steel AISI 304 or AISI 316. These enclosures provide a good compromise between impact resistance, weather resistance and chemicals, they are non-flammable and have a maximum IP69K degree of ingress protection. Size (mm): Dia. 125 x 125 x 130. Volume (cm3): 1505.

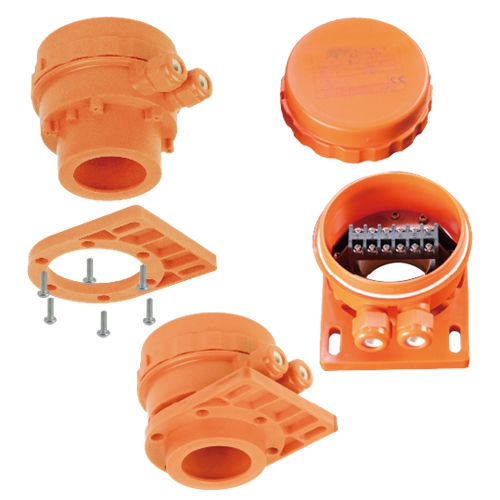

Type: Y3C7

Polypropylene immersion heater enclosure for surface treatment baths

Plastic enclosures, highly corrosive environments. These enclosures are in polypropylene. Plastic terminals can be added.
Size (mm): 105x95.
Volume (cm3): 663.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Thermostat, Immersion heater.

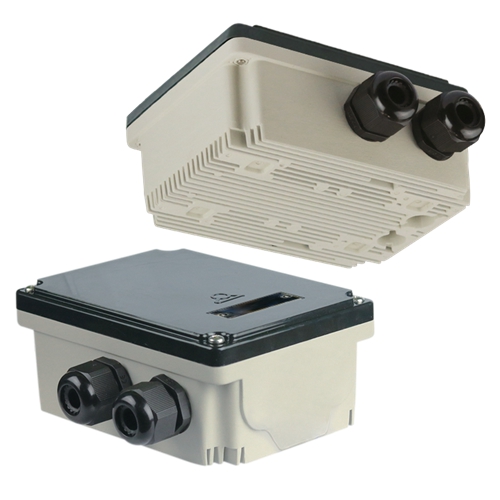

Type: Y3H1

Enclosure with aluminum body, black or transparent polycarbonate cover, for immersion heater or solid state relays (SSR) controls

These enclosures are in pressure die cast aluminum, raw material of plastic cover is PA66.
Size (mm): 81x132 x182.
Volume (cm3): 1870.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Immersion heater.

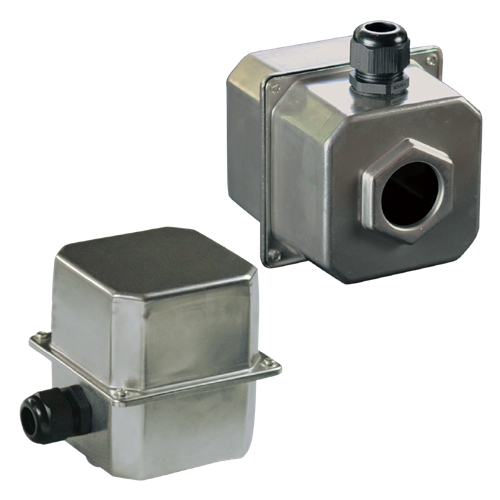

Type: Y3S8

Big size enclosure for immersion heater with built-in hexagon

Deep drawn enclosure for moderately corrosive media, in stainless steel AISI 304 or AISI 316, these enclosures provide a good compromise between impact resistance, weather resistance and chemicals. They are non-flammable and have a maximum IP69K degree of ingress protection.
Size (mm): Dia. 125 x 125 x 138. Volume (cm3): 1525.

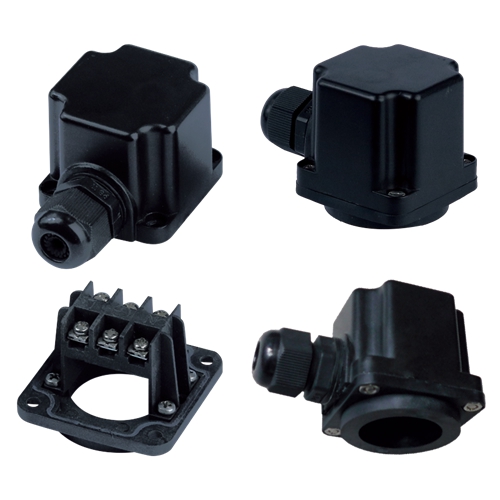

Type: Y301

Miniature enclosure for temperature sensor, level sensor, electronic printed circuit or cartridge heater

Plastic enclosures, these enclosures are in fiberglass reinforced PA66.
Size (mm): 48 x 48 x41.
Volume (cm3): 93.
Ingress protection: IPX5.
Level of impact resistance: IK8.
Suitable for: Immersion heater

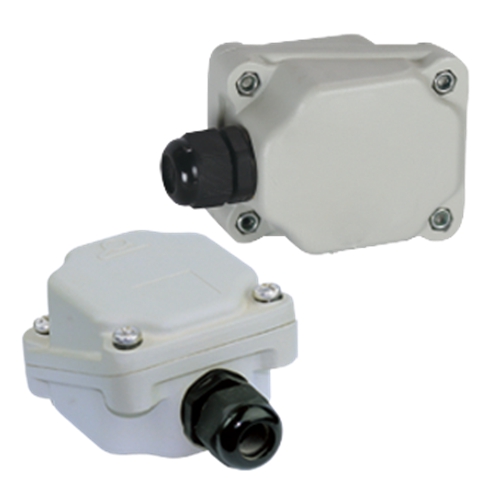

Type: Y303

Miniature enclosure for immersion heater, level sensor or temperature sensor

These enclosures are in pressure die cast aluminum.
Size (mm): 78x66 x50.
Volume (cm3): 210.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Temperature sensor, Immersion heater, Level sensor, Electronic board.

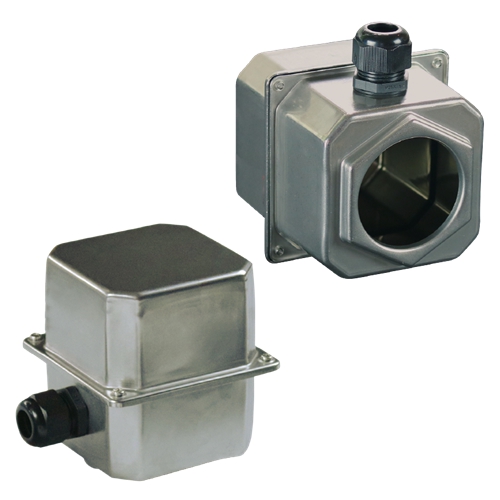

Type: Y3S9

Big size enclosure with built in hexagon for large size immersion heaters

Deep drawn enclosure for moderately corrosive media, in stainless steel AISI 304 or AISI 316, these enclosures provide a good compromise between impact resistance, weather resistance and chemicals. They are non-flammable and have a maximum IP69K degree of ingress protection. Size (mm): Dia.125 x 125 x 138. Volume (cm3): 1551.

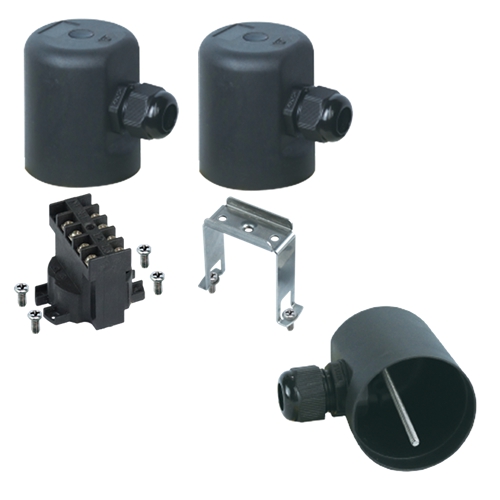

Type: Y3C1

Immersion heater enclosure for standard fittings with three M4 mounting screws at 120 °

Plastic enclosures, these enclosures are in fiberglass reinforced PA66. Size (mm): 54x74.
Volume (cm3): 180.
Ingress protection: IP69K.
Level of impact resistance: IK8.
Suitable for: Finned heater.

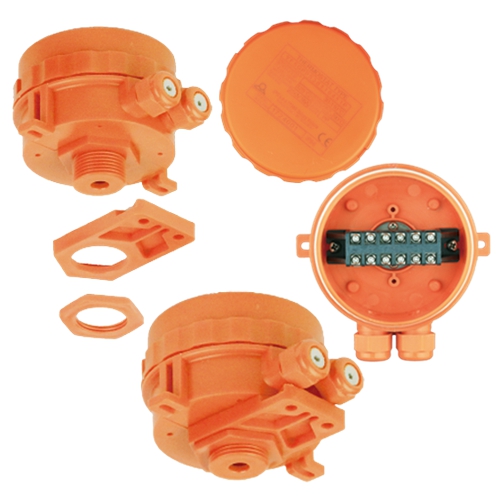

Type: Y3C8

Polypropylene temperature sensor enclosure for surface treatment baths

Plastic enclosures, highly corrosive environments. These enclosures are in polypropylene. Plastic terminals can be added. Size (mm): 105x82.
Volume (cm3): 525.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Thermostat, Temperature sensor, Level sensor.

Type: Y3P3

Medium size enclosure for immersion heater, finned heaters or controls.

These enclosures are in pressure die cast aluminum. Size (mm): 66x89 x114.
Volume (cm3): 650.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Immersion heater, Finnde heater, Thermostat, Electronic board.

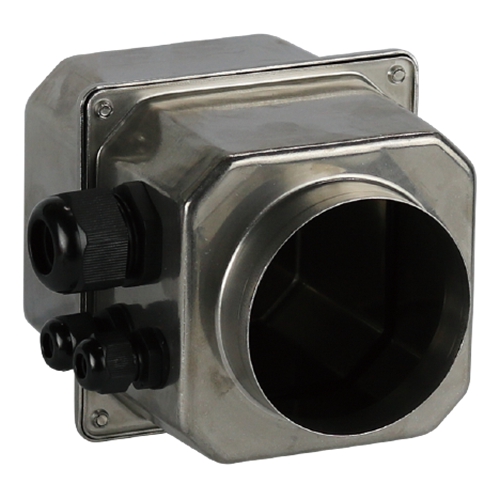

Type: Y3T8

Big size immersion heater or controls enclosure, for direct welding on pipes

Deep drawn enclosure for moderately corrosive media, in stainless steel AISI 304 or AISI 316. These enclosures provide a good compromise between impact resistance, weather resistance and chemicals, they are non-flammable and have a maximum IP69K degree of ingress protection. Size (mm): Dia. 125 x 125 x 135. Volume (cm3): 1668.

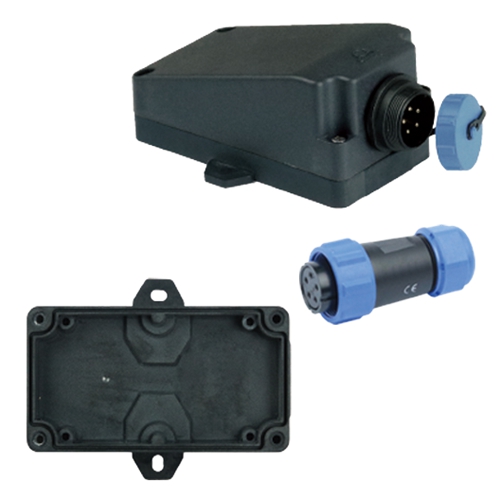

Type: Y3A4

Miniature enclosure for temperature sensor, level sensor, electronic printed circuit or cartridge heater.

Plastic enclosures, these enclosures are in fiberglass reinforced PA66.
Size (mm): 100 x 56 x 48.
Volume (cm3): 216.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Temperature sensor, Level sensor, Electronic board.

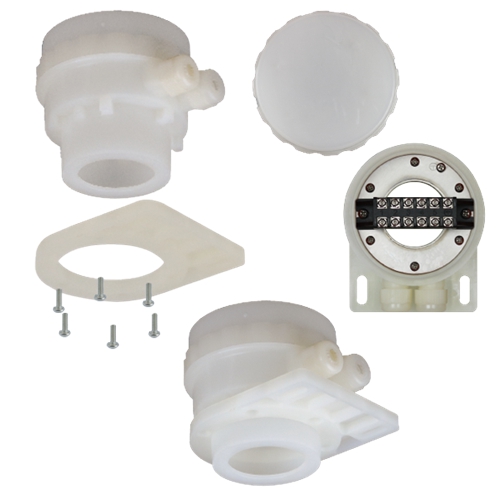

Type: Y3E6

PVDF immersion heater enclosure

Plastic enclosures, highly corrosive environments, for surface treatment baths and highly corrosive environments. Plastic terminals can be added. Size (mm): 105 x 95.
Volume (cm3): 663.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Thermostat, Immersion heater.

Type: Y304

Enclosure for immersion heater, level sensor or temperature sensor

These enclosures are in pressure die cast aluminum.
Size (mm): 78 x78 x 74.
Volume (cm3): 410.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Temperature sensor, Immersion heater, Thermostat, Level sensor, Electronic board.

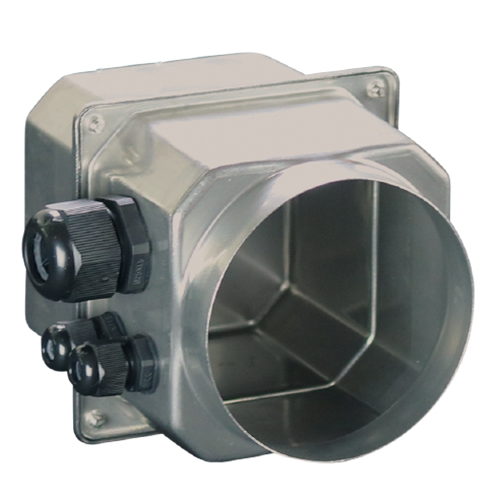

Type: Y3TA

Big size immersion heater or controls enclosure, for direct welding on pipes

Deep drawn enclosure for moderately corrosive media, in stainless steel AISI 304 or AISI 316. These enclosures provide a good compromise between impact resistance, weather resistance and chemicals, they are non-flammable and have a maximum IP69K degree of ingress protection. Size (mm): Dia. 125 x 125 x 135. Volume (cm3): 1668.

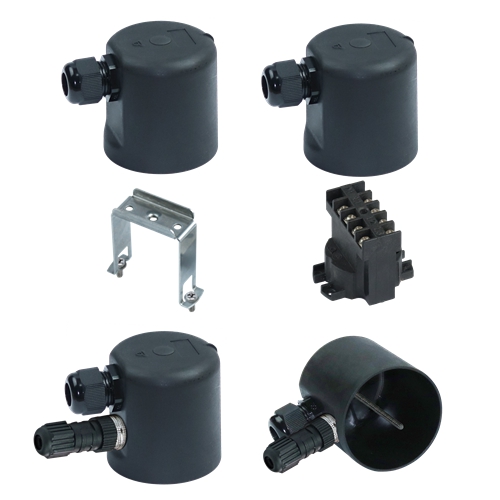

Type: Y3C2

Miniature Enclosure for 2” fittings

Plastic enclosures, these enclosures are in fiberglass reinforced PA66.
Size (mm): 65 x 66.
Volume (cm3): 200.
Ingress protection: IP69K.
Level of impact resistance: IK8.
Suitable for: Immersion heater.

Type: Y305

Enclosure for immersion heater

These enclosures are in pressure die cast aluminum.
Size (mm): 105 x 105 x 96.
Volume (cm3): 858.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Immersion heater, Thermostat, Electronic board.

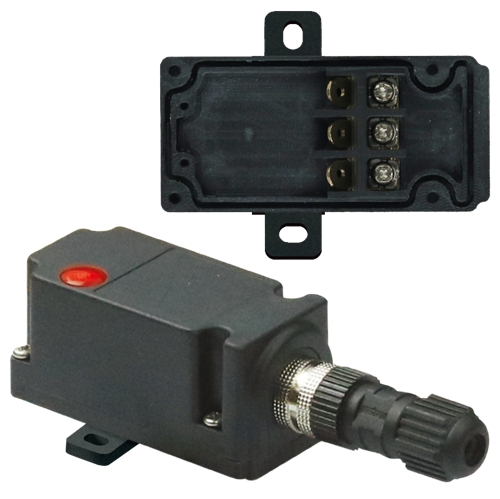

Type: Y3A2

Sub-miniature enclosure for temperature sensor, level sensor, electronic printed circuit or cartridge heater. Removable wall mounting bracket.

Plastic enclosures, these enclosures are in fiberglass reinforced PA66.
Size (mm): 70 x 33 x 33.
Volume (cm3): 72.
Ingress protection: IPX4.
Level of impact resistance: IK8.
Suitable for: Temperature sensor, Level sensor, Electronic board.

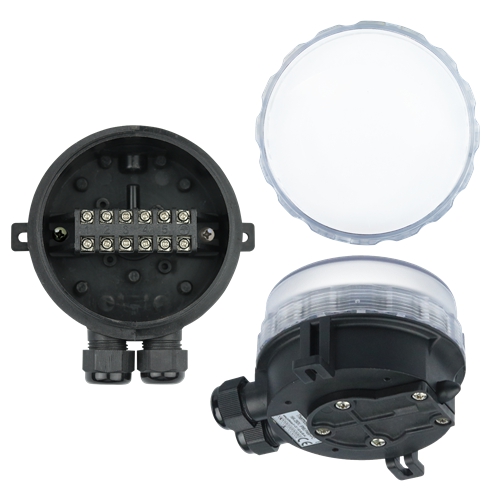

Type: Y3F1

Wall mounting temperature sensor enclosure. In PA66 and polycarbonate

Plastic enclosures, these enclosures are in fiberglass reinforced PA66 + PC.
Size (mm): 105 x 66.
Volume (cm3): 500.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Temperature sensor, Thermostat.

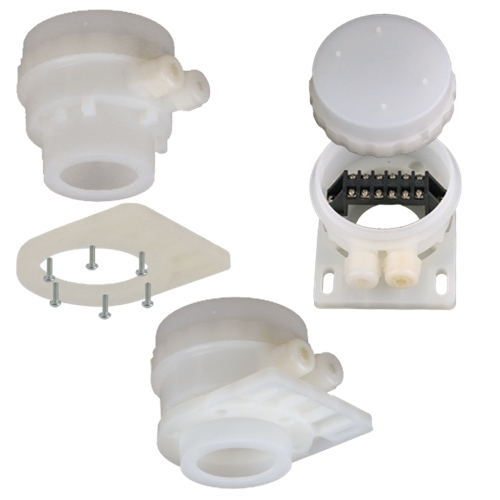

Type: Y3E7

PVDF immersion heater enclosure

Plastic enclosures, highly corrosive environments, for surface treatment baths and highly corrosive environments. Plastic terminals can be added.
Size (mm): 105 x 95.
Volume (cm3): 663.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Thermostat, Immersion heater.

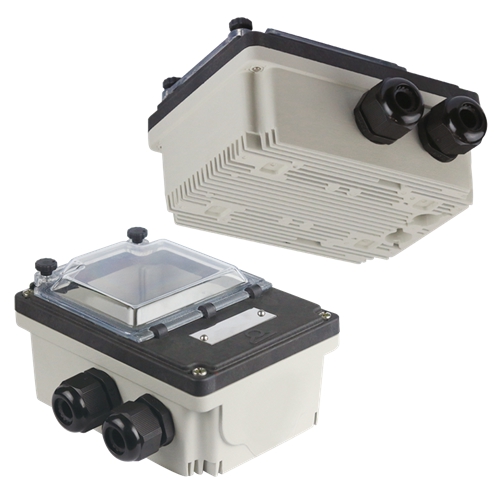

Type: Y3H2

Enclosure with aluminum body, and plastic cover with transparent window,for immersion heater or solid state relays (SSR) controls.

These enclosures are in pressure die cast aluminum, raw material of plastic cover is PA66 and PC.
Size (mm): 95 x 132 x 182.
Volume (cm3): 2010.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Immersion heater, Thermostat.

Type: Y3A3

Miniature enclosure for temperature sensor, level sensor, electronic printed circuit or cartridge heater

Plastic enclosures, these enclosures are in fiberglass reinforced PA66.
Size (mm): 100 x 56 x 37.
Volume (cm3): 208.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Temperature sensor, Level sensor, Electronic board.

Type: Y3F2

Immersion heater, level sensor or temperature sensor enclosure. In PA66 and polycarbonate.

Plastic enclosures, these enclosures are in fiberglass reinforced PA66 + PC.
Size (mm): 105 x 66.
Volume (cm3): 500.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Temperature sensor, Immersion heater, Thermostat, Level sensor.

Type: Y3P5

Large size enclosure for immersion heater, finned heaters or controls

These enclosures are in pressure die cast aluminum. Size (mm): 92 x 124 x 159.
Volume (cm3): 1790.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Immersion heater, Finnde heater, Thermostat, Electronic board.

Type: Y3C3

Simplified round enclosure for 2”1/2 and M77 x 2 fittings

Plastic enclosures, these enclosures are in fiberglass reinforced PA66.
Size (mm): 86 x 75.
Volume (cm3): 416.
Ingress protection: IP69K.
Level of impact resistance: IK9.
Suitable for: Immersion heater, thermostat.

Type: Y3E8

PVDF temperature sensor enclosure

Plastic enclosures, highly corrosive environments, for surface treatment baths and highly corrosive environments. Plastic terminals can be added.
Size (mm): 105 x 82.
Volume (cm3): 525.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Thermostat, Temperature sensor, Level sensor.

Type: Y3G1

Aluminum and plastic composite enclosure, for immersion heater with 30 mm offset fitting

These enclosures are in pressure die cast aluminum, with polycarbonate cover.
Size (mm): 182 x 132 x 130.
Volume (cm3): 2435.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Immersion heater, Thermostat, Finned heater, Electronic board.

Type: 66RJ-66RU

Stainless steel fitting, with 3 screws rotating ring, deep drawn body and machined thread, for medium corrosive environments

Immersion heaters fitting.
Minimum size: 1" ½ .
Maximum size: 2" ½.
Material: Stainless steel 304L.
Type: Rotation ring and welded cup.

Type: Y3B1

Temperature sensor, thermostat or level sensor enclosure

Plastic enclosures, these enclosures are in fiberglass reinforced PA66.
Size (mm): 105 x 88 x 58.5.
Volume (cm3): 550.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Immersion heater, Thermostat.

Type: Y3P6

Large size enclosure for immersion heater, finned heaters with external adjustment knob

These enclosures are in pressure die cast aluminum.
Size (mm): 89 x 124 x 155.
Volume (cm3): 1600.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Immersion heater, Finnde heater, Thermostat, Electronic board.

Type: 66RK-66RV

Stainless steel fitting with 3 screws stamped rotation ring, with deep drawn body and machined thread, for medium corrosive environments. Non-welded heating elements flange.

Immersion heaters fitting.
Minimum size: 1" ½ .
Maximum size: 2" ½.
Material: Stainless steel 304L.
Type: Rotation ring + un-welded cup.

Type: 66JP

Fitting gaskets for immersion heaters, thermostats, temperature sensors or level sensors in silicone, NBR, PTFE.

Application: For immersion heaters, thermostats, temperature sensors or level sensors in silicone, NBR, PTFE.
Minimum size: 1".
Maximum size: M77 x 2.
Material: Silicone, NBR, PTFE.
Type: Elastomeric flat gaskets.

Type: Y3B2

Immersion heater housing for commercial water heater tanks

Plastic enclosures, these enclosures are in fiberglass reinforced PA66.
Size (mm): 105 x 88 x 84.5.
Volume (cm3): 633.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Immersion heater, Thermostat.

Type: 66RO-66RP

Stainless steel fitting with 3 screws stamped rotation ring,with deep drawn body and massive machined thread, for medium corrosive environments.

Immersion heaters fitting.
Minimum size: 1" ½ .
Maximum size: 2" ½.
Material: Stainless steel.
Type: Rotation ring and massive thread.

Type: Y3F3

Immersion heater enclosure with extension. In PA66 and polycarbonate.

Plastic enclosures, these enclosures are in fiberglass reinforced PA66 + PC.
Size (mm): 105 x 87.
Volume (cm3): 583.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Immersion heater, Thermostat.

Type: Y3P4

Medium size enclosure for immersion heater, finned heaters with external adjustment knob

These enclosures are in pressure die cast aluminum.
Size (mm): 110 x 110 x 70.
Volume (cm3): 725.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Immersion heater, finned heater, Thermostat.

Type: 66JF

Fitting gaskets for immersion heaters, thermostats, temperature sensors or level sensors in compressed fiber without asbestos.

Application: For immersion heaters, thermostats, temperature sensors or level sensors in compressed fiber without asbestos.
Minimum size: 1".
Maximum size: M77 x 2.
Material: Asbestos-free compressed fiber.
Type: Rigid flat gaskets.

Type: Y306

Round enclosure for immersion heater or temperature sensor

Plastic enclosures, these enclosures are in fiberglass reinforced PA66.
Size (mm): 100 x 100.
Volume (cm3): 700.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Immersion heater, Temperature sensor.

Type: Y3G2

Aluminum and plastic composite enclosure, with transparent window cover, for immersion heater with 30 mm offset fitting

These enclosures are in pressure die cast aluminum, raw material of plastic cover is PA 66 and PC.
Size (mm): 182 x 132 x 144.
Volume (cm3): 2575.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Immersion heater, Thermostat, Electronic board.

Type: 66RQ-66RR

Stainless steel fitting with 3 screws stamped rotation ring, with deep drawn body and massive machined thread, for medium corrosive environments. Non-welded thread

Immersion heaters fitting.
Minimum size: 1" ½ .
Maximum size: 2" ½.
Material: Stainless steel.
Type: Rotation ring and non-welded massive thread.

Type: 66JL

Gaskets with centering lip, for fittings with rotation ring, in silicone or NBR

Application: For fittings with rotation ring, in silicone or NBR
Minimum size: 1".
Maximum size: M77 x 2.
Material: Silicone, NBR, FKM (Viton).
Type: Elastomeric gasket with centering lip.

Type: 6YFE

Internal mounting boards for enclosures with controls.

Mounting style: Assembly on enclosure with 2 mounting holes at 108 mm distance.
Material : PA66.
Type : 19 mm elevated internal board.

Type: Y3C4

Round enclosure for immersion heater or temperature sensor with extension

Plastic enclosures, these enclosures are in fiberglass reinforced PA66.
Size (mm): 100 x 125.
Volume (cm3): 783.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Immersion heater, Thermostat.

Type: 66R2-66R6

Stainless steel fitting with wide rotating flange, welded thread and heating elements flange

Immersion heaters fitting.
Minimum size: 1" ½ .
Maximum size: M45 x 2.
Material: Stainless steel.
Type: Big deep drawn flange. Welded cup.

Type: BEN-BEO

Miniature connection blocks in PA66, one side screw terminals, one side solder terminals, surface mounting

Minimum size : 16 x 19 x 27 MM.
Maximum size : 16 x 19 x 44 MM. Material : PA66.
Type: 2.5mm2 connection block, surface mounting.

Type: 6YFD

Internal mounting boards for enclosures with controls

Mounting style : Assembly on enclosure with 2 mounting holes at 108 mm distance.
Material : PA 66.
Type : 15.5 mm elevated internal board.

Type: Y3M1

Big size enclosure with extension, for immersion heater.

Size (mm): 130 x 130 x 190.
Volume (cm3): 2836.
Material: PA66.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Immersion heater, Thermostat, Electronic board.

Type: 66R3-66R7

Stainless steel fitting with wide rotating flange, welded thread, non-welded heating elements flange

Immersion heaters fitting. Minimum size: 1" ½ .
Maximum size: M45 x 2.
Material: Stainless steel.
Type: Big deep drawn flange. Non-welded cup.

Type: BEJ-BEL

Special elevated PA66 connection blocks, Screw terminals on both sides.

Minimum size : 22 x 40 x 27mm.
Maximum size : 52 x 46.5 x 40mm.
Material : PA66.
Type : Special design 2.5mm2 connection block.

Type: 6YFC

Internal mounting boards for enclosures with controls

Mounting style : Assembly on enclosure with 2 mounting holes at 108mm distance.
Material: PA66.
Type: 5mm elevated internal board.

Type: Y309

All aluminum enclosure, for immersion heater with 30 mm offset fitting

These enclosures are in pressure die cast aluminum. Size (mm): 182 x132 x 144.
Volume (cm3): 2795.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Immersion heater, Thermostat, Electronic board.

Type: 66R4-66R8

Stainless steel fitting with wide rotating flange, welded massive thread

Immersion heaters fitting.
Minimum size: 1" ½ .
Maximum size: M45 x 2.
Material: Stainless steel.
Type: Big deep drawn flange. Massive welded thread.

Type: 66RB

Brass fittings, double thread, without grounding terminal

Minimum size: 1".
Maximum size: M77 x 2.
Material: Brass.
Type: Double thread, no ground.

Type: 66JR

O-ring type gaskets

Application : For immersion heaters, thermostats, temperature sensors or level sensors fittings, in NBR or silicone.
Minimum size : 1"1/4.
Maximum size : M77 x 2.
Material : Silicone, NBR.
Type : O-ring for rotation ring.

Type: 66KE

Internal saddles

Application : For round enclosures assembly on fittings.
Minimum size : 1"1/2.
Maximum size : 2"1/2.
Material : 304 Stainless steel.
Type : Internal saddles.

Type: BES-BET

Snap-On PA66 terminal

For large enclosures, mixed size terminals.
Minimum size : 119 x 49.5 x 34 mm.
Maximum size : 119 x 49.5 x 34 mm.
Material : PA66.
Type : Mixed terminal sizes snap-on connection blocks.

Type: 9BBJO

Silicone boots for heating elements terminals output

These caps and boots are designed to protect heating elements electrical terminals against accidental contact. When properly filled with a sufficiently fluid silicone resin or epoxy resin, they provide an ingress protection level up to IP67.
Flammability: UL 94-V0.
Hardness: 60 Shore A.
Color: black. Other colors available.

Type: Y3N1

Enclosure for controls, connection, temperature sensor, thermostat, level sensor. Removable wall mounting legs.

Size (mm): 130 x 180 x 80.
Volume (cm3): 1870.
Material: PA66.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Immersion heater, Finned heater, Thermostat, Electronic board.

Type: Y3J1

Composite aluminum and plastic enclosure, with polycarbonate plain cover, for immersion heater with high 120mm offset fitting.

These enclosures are in pressure die cast aluminum, with polycarbonate cover.
Size (mm): 182x132 x210.
Volume (cm3): 3066.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Immersion heater, Thermostat, Electronic board.

Type: 66R5-and-66R9

Stainless steel fitting with wide rotating flange, non-welded massive thread Immersion heaters fitting.

Minimum size: 1" ½ .
Maximum size: M45 x 2.
Material: Stainless steel.
Type: Big deep drawn flange. Massive welded thread.

Type: 66RC

Brass fittings, double thread, with side grounding terminal

Minimum size: 1"1/2.
Maximum size: M77 x 2.
Material: Brass.
Type: Double thread, side ground.

Type: 66JE

Hexagonal capping gasket for deep drawn stainless steel fittings

Minimum size : 1"1/4.
Maximum size : M77 x 2.
Material : Silicone, NBR.
Type : Wrapping gaskets.

Type: Y3J2

Composite aluminum and plastic enclosure, with polycarbonate transparent window, for immersion heater with high 120mm offset fitting.

These enclosures are in pressure die cast aluminum, raw material of plastic cover is PA 66 and PC.
Size (mm): 182 x132 x 225.
Volume (cm3): 3206.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Immersion heater, Thermostat, Electronic board.

Type: 66RW

2” plastic fittings for corrosive liquids

Application: Swimming pool, spas and aquariums waters. Without built-in pockets.
Minimum size: 2".
Maximum size: 2". Material: PPS.
Type: Compression gasket fitting.

Type: 66KP-66KG

Rails

Application: For assembly of thermostats.
Minimum size: 1 thermostat.
Maximum size: 2 thermostats.
Material: 304 Stainless steel.
Type: Thermostats mounting.

Type: 66TTW8-66TNW8

Immersion heaters thermowells

Dia. 55mm immersion heater , without thread, for corrosive baths.
Minimum size: Dia.55 x 110 mm.
Maximum size: Dia.55 x 1000 mm.
Material: 316 stainless steel, titanium.
Type: Pocket with compression type gasket.
Designed to fit dia. 52mm steatite heating elements.

Type: Y310

All aluminum enclosure, with aluminum cover, for immersion heater with high 120mm offset fitting.

These enclosures are in pressure die cast aluminum.
Size (mm): 182 x 132 x 225.
Volume (cm3): 3426.
Ingress protection: IP69K.
Level of impact resistance: IK10.
Suitable for: Immersion heater, Thermostat, Electronic board.

Type: 66RW

2” plastic fittings for corrosive liquids

Application: Swimming pool, spas and aquariums waters. Without built-in pockets.
Minimum size: 2".
Maximum size: 2".
Material: PPS.
Type: Compression gasket fitting with pockets.

Type: 66RD

Brass fittings, double thread, with center grounding terminal

Minimum size: 1".
Maximum size: 1"1/4.
Material: Brass.
Type: Double thread, central ground.

Type: 66KD

DIN rails

Application : For assembly of temperature controllers, contactors and power relays.
Minimum size : 1 contactor.
Maximum size : 2 contactors.
Material : 304 Stainless steel.
Type : Din rail.

Type: 66Q1

Grommets

Application : Used to close access to internal adjustment shafts, in silicone.
Minimum size : Dia. 23.5mm.
Maximum size : Dia. 23.5mm.
Material : Silicone.
Type : Plug.

Type: BEP-BEQ-BER

14mm elevated connection blocks, screw terminals on both sides.

Minimum size: 22 x 65 x 26.5mm.
Maximum size: 22 x 95 x 26.5mm.
Material : PA66.
Type : Elevated 2.5mm2 connection block.

Type: 66RF

Brass fittings, single thread, with center grounding terminal

Minimum size: 1". Maximum size: 1". Material: Brass. Type: Single thread, central ground.

Type: 66Q2-66Q3

Caps

Application: Used on internal and external access to IP69K adjustment shafts, in PA66.
Minimum size: M25 x 1.5.
Maximum size: M25 x 1.5.
Material: PA66.
Type: Plug.

Type: 66UT

Heaters thermowells

Dia. 55mm, with 2″1/2 and M77 x 2 threads.
Minimum size: 2"1/2, L = 110mm.
Maximum size: M77 x 2, L =1000mm.
Material: 316 stainless steel.
Type: Threaded pocket.

Type: 66NS

Split nuts

Application: For spa and swimming pool heaters. Exist for 2" BSPP, 2" 1/2 and 3" Ansi B1.9 threads (USA).
Minimum size: 2" (BSPP).
Maximum size: 3" (ANSI).
Material: ABS.
Type: Split nut.

Type: 66RE

Brass fitting, using 3 screws rotation ring, for common immersion heaters

Minimum size: 1"1/4.
Maximum size: M77 x 2.
Material: Brass.
Type: 3 screws rotation ring.

Type: 66Q4

Waterproof shaft gasket

Application: For external knob.
Minimum size: Dia. 10 mm.
Maximum size: Dia. 10 mm.
Material : Silicone.
Type : Shaft gasket (IP54).

Type: 66TTL4-66TNL4

Immersion heaters thermowells

Dia. 25mm, without thread, for corrosive baths.
Minimum size: Dia. 25 x 110 mm.
Maximum size: Dia. 25 x 1000 mm.
Material : 316 stainless steel Titanium.
Type : Pocket with compression type gasket.

Type: 66Z1-66Z2

Shutters of deep drawn stainless steel fittings

Minimum size: 1"1/4.
Maximum size: 2"1/2.
Material: PA66.
Type: Shutter.

Type: 6YRE

Relay boards

With 4 to 6 miniature relays, rating 16A 250V, coil 220/240V.One of their application is to convert single pole devices into 3 poles.
Minimum size: 37 x 115 x 19.4 mm.
Maximum size: 37 x 115 x 19.4 mm.
Material: PCB.
Type: Relay boards.

Type: 66XF

Internal rotation stamped rings

Application: For immersion heaters fittings.
Minimum size: 1".
Maximum size: M77 x 2.
Material: Stainless steel AISI 304.
Type: Rotation flanges for fittings.

Type: 66RG

Lightened brass fittings, single thread

Minimum size: 1"1/4.
Maximum size: M45 x 2.
Material: brass.
Type: single thread.

Type: 66YS

Stainless steel fittings

Machined and welded threads with deep drawn flange, for immersion heaters.
Minimum size: 1"1/2. Maximum size: M77 x 2.
Material : AISI 304, AISI 316.
Type: tig welded thread for enclosure.

Type: 6YRC

Relay boards

With 2 to 3 miniature relays, rating 16A 250V, coil 220/240V. One of their application is to convert single pole devices into 3 poles.
Minimum size: 38 x 60 x 19.4mm. Maximum size: 31 x 70 x 19.4mm.
Material: PCB.
Type: relay boards.

Type: 66XN

Threaded internal rotation rings

Tightening by 3 screws.
Minimum size: 1".
Maximum size: M77 x 2.
Material: nickel plated screws.
Type: threaded internal rotation rings.

Type: 9BBJO

Cable gland silicone gaskets for heat tracing and flat cables

These gaskets are used on M24 Polyamide cable glands and on M20 built-in cable glands of Y6, Y7, Y8 industrial control boxes. Many other silicone boots for wire end connection or wire end termination have been developed for heat tracing applications.

Type: 66NL-66NI-66NT-66NK

Lock nuts for fittings

Minimum size: 1/2".
Maximum size: M77 x 2.
Material: 304, 316 stainless steel and brass.
Type: nuts.

Type: 66YU

Stainless steel fittings

Machined and welded threads for immersion heaters.
Minimum size: 1"1/2.
Maximum size: M77 x 2.
Material : AISI 304, AISI 316.
Type: Plain fitting for enclosure.
Designed for direct welding on enclosure or deep drawn fittings with soldering lip.

Type: 66XE

External rotation rings

Application: For immersion heater fittings. Allow to adjust angular position of immersion heater enclosure after assembly on tank, without need to open it.
Minimum size: 0.
Maximum size: M77 x 2.
Material: Aluminum.
Type: External rotation ring for fittings assembly.

Type: 6YFB

Internal mounting boards for enclosures with controls

Mounting style: Assembly on enclosure with 2 mounting holes at 108mm distance.
Material: PA66, aluminum.
Type: Flat internal board.

Type: 9BBAE-9BBVR-9BBRA-9BBSI

Main stainless steel fittings

1” 1/2 for TIG welding.
1”1/2 Stainless steel set for brazing.
1” 1/2 fitting unassembled stainless steel parts NOT including ceramic spacers and not the earthing terminal.

Type: 66YQ

Stainless steel machined threads

Application: for temperature sensors and level sensors.
Minimum size: 1/2".
Maximum size: 3/4".
Material: AISI 304, AISI 316.
Type: Plain fitting for enclosure.
Designed for direct welding on deep drawn stainless steel enclosures with soldering lip.

Type: Y3C6

Polypropylene or PVDF immersion heater connection boxes, for corrosive environment applications, IP66.

Material: PP (orange) or PVDF (White) cover and bottom.
Screws: There is no external screw in this housing.
Cover: Screwed cover, with Molded FPM (Viton) fluoro elastomeric polymer O-ring gasket.
Temperature resistance:

  • Polypropylene version: room temperature or temperature transmitted by conduction from the heater tube ≤ 80 °C.
  • PVDF version: room temperature or temperature transmitted by conduction from the heater tube ≤110 °C.
Type: 9BBRA-9BRJO-9BBVR-9BBSI-9BRST

Fittings and threaded accessories for immersion heaters

Fitting nuts in 304 stainless steel, brass, and 316 stainless steel made on order only. 304L fitting for tank can be brazed or welded.
Fitting gaskets can be in fiber, O-ring NBR, PTFE.
Fitting to enclosure gaskets (silicone, 60 Shore A).

Type: Y3L2

Miniature enclosure for temperature sensor or level sensor

Deep drawn enclosure for moderately corrosive media, in stainless steel AISI 304 or AISI 316, these enclosures provide a good compromise between impact resistance, weather resistance and chemicals, they are non-flammable and have a maximum IP69K degree of ingress protection, Size(mm): 75 x60 x52, Volume (cm3):119.
