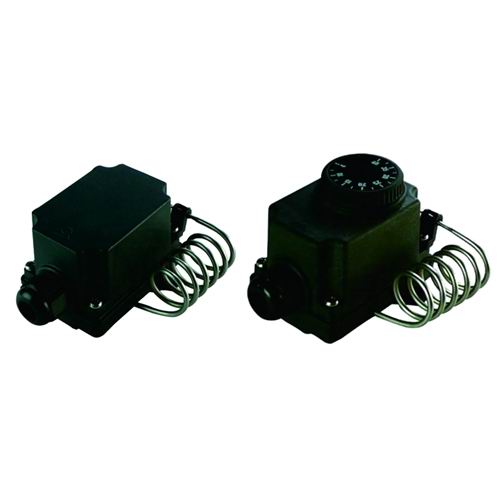

Pigtail bulb room thermostats

Housing: IP44, black PC-ABS, fiber glass reinforced, UL94V0.
Cable input: One M20 cable gland.
Set point adjustment: By printed knob for external adjustment models, by screw driver and printed dial on internal adjustment models.
Sensing element: Liquid filled bulb, coiled on the side of enclosure.
Adjustment range: 4-40℃ (40-105°F).
Mounting: Wall mounting.
Contact: SPDT.
Electrical rating: 20A 250V.
Close on temperature rise contact (C-2).

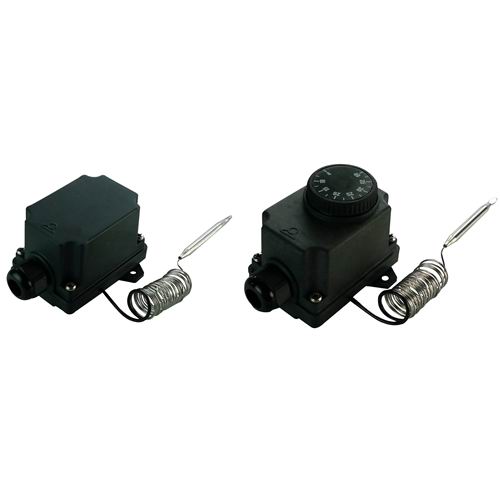

Bulb and capillary thermostats

Housing: IP44, black PC-ABS, fiberglass reinforced, UL94V0.
Electrical input: One M20 cable gland.
Set point adjustment: By printed knob for external adjustment models, by screw driver and printed dial on internal adjustment models.
Temperature adjustment ranges: up to 500℃.
Contact: SPDT.
Electrical rating: 20A 250V.
Minimum Storage temperature: -35℃ (-30°F).
Maximum ambient temperature: 60℃ (140°F).

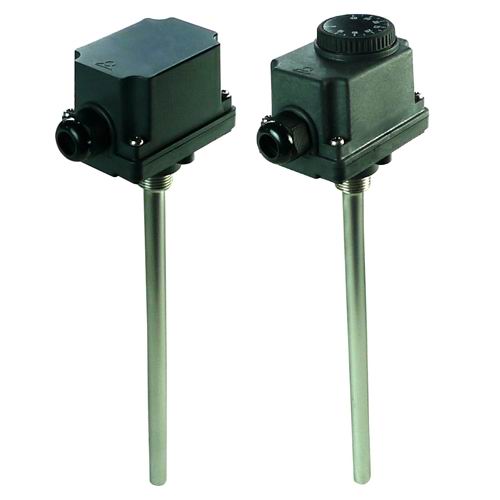

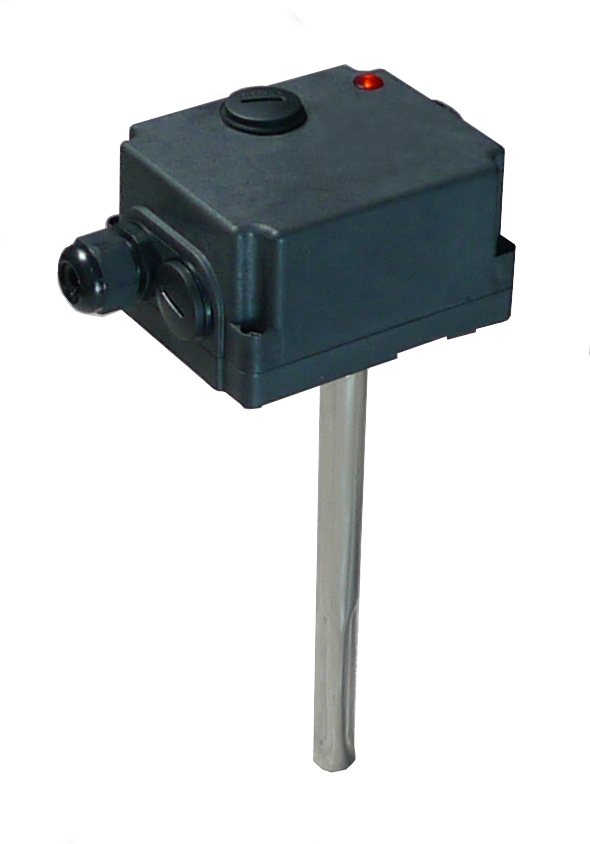

Rod thermostats

Housing: IP44, black PC-ABS, UL94V0.
Cable input: One M20 cable gland.
Set point adjustment: By printed knob for external adjustment models, by screw driver and printed dial on internal adjustment models.
Sensing element: 304L stainless steel or nickel plated brass.
Adjustment ranges: -35+35℃, 4-40℃, 30-90℃, 30-110℃.
Rod length: 90, 230, 300 mm. Other length on request.
Mounting: by the ½” BSPT pocket fitting.
Contact: SPDT.
Electrical rating: 20A 250V.
Minimum storage temperature: -35℃ (-30°F).
Maximum ambient temperature: 60℃ (140°F).

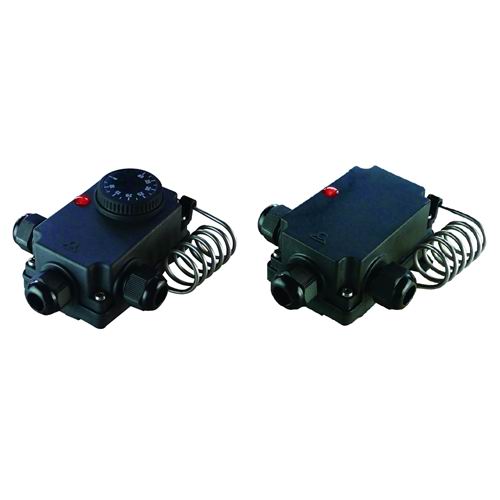

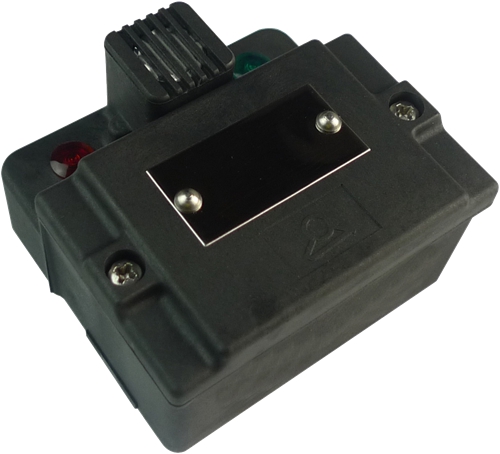

“Pigtail”bulb room thermostat, with built-in pilot light and 2 or 3 M20 cable glands

Applications: Ambient temperature control in professional premises where good protection against liquid splashes or dust is requested. Output with 2 or 3 cable glands, allowing direct connection of heat tracing cables for freeze protection.
Main features:Housing: Reduced height, IP44, black PC-ABS fiberglass reinforced, UL94V0.
Set point adjustment: By printed knob for external adjustment models, by screw driver and printed dial on internal adjustment models.
Adjustment ranges: 4-40°C (40-105°F).
Contact: SPNC (open on temperature rise).
Pilot light: Neon, 230V, standard in red, parallel connection on the load.
Electrical rating: 20A 250V.

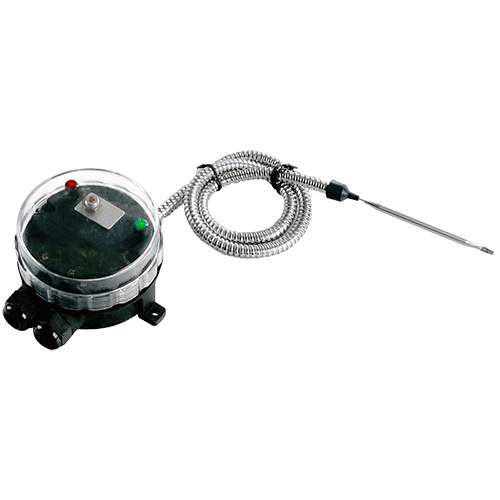

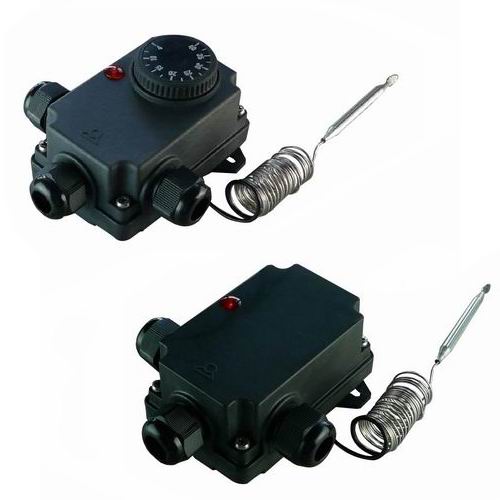

Bulb and capillary thermostats, with built-in pilot light and 2 or 3 M20 cable glands

Applications: Distance temperature control in professional premises where good protection against liquid splashes or dust is requested. Output with 2 or 3 cable glands. Housing: Reduced height, IP44, black PC-ABS fiberglass reinforced, UL94V0. Set point adjustment: By knob for external adjustment models, by screw driver and printed dial on internal adjustment models.
Temperature adjustment ranges: up to 500°C.
Capillary length: 1.5m.
Pilot light: Neon, 230V, standard in red, parallel connection on the load.
Contact: SPNC.
Electrical rating: 20A 250V.

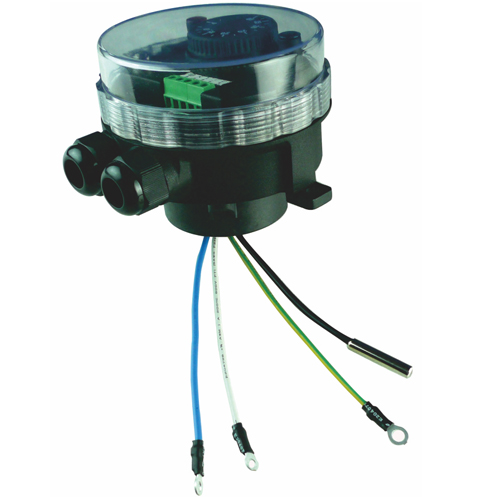

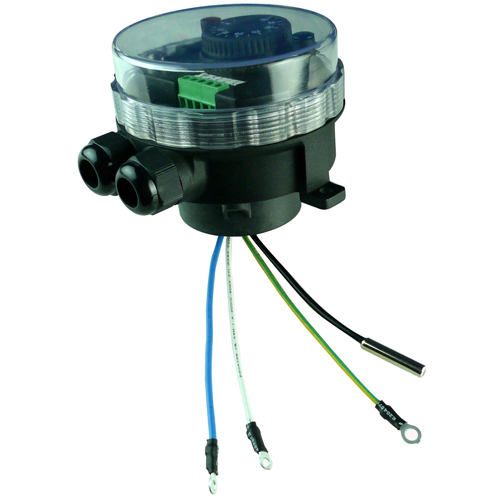

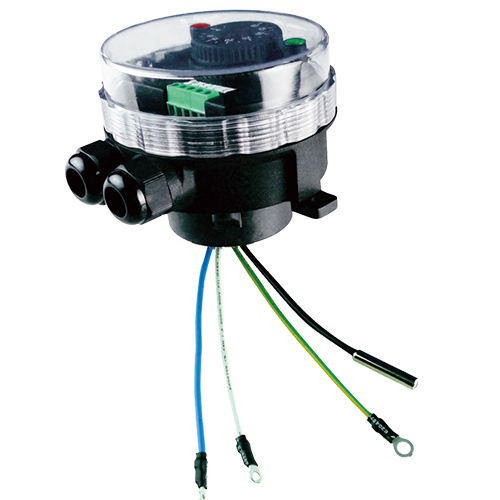

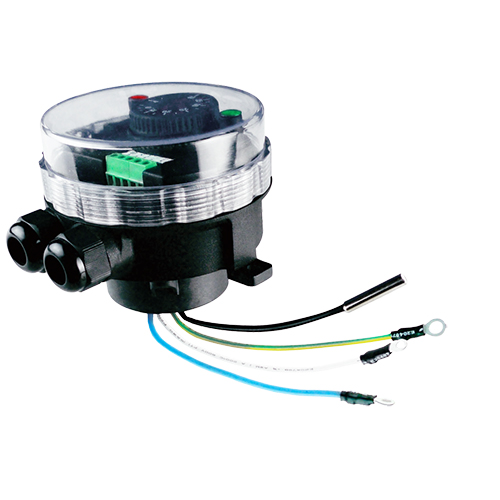

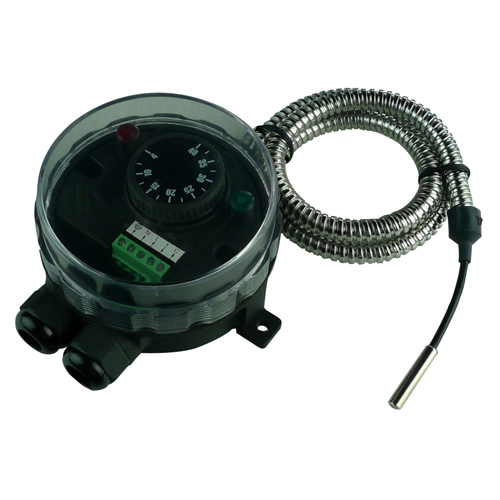

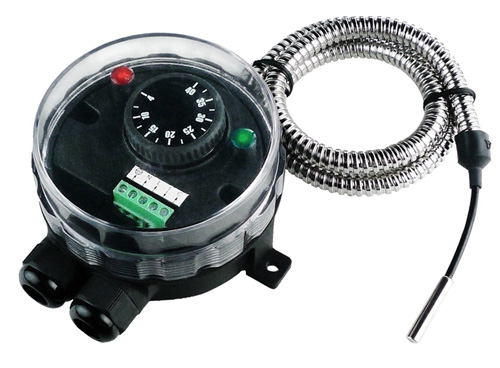

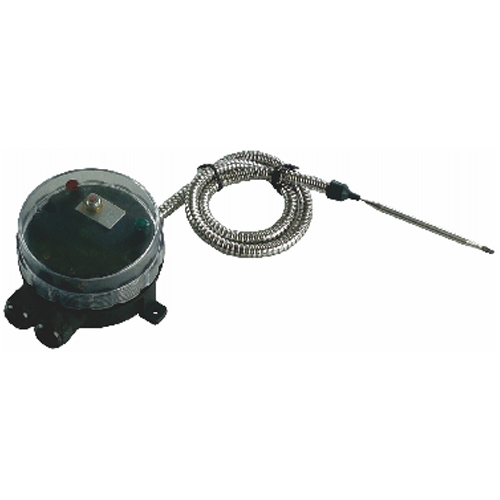

Electronic thermostats, remote sensor, IP69K enclosure in PA66 and PC

Applications:

• Equipment requesting the highest resistance to water ingress.
• The transparent cover allows to visualize the set point and the 2 pilot lights.
• Very small differential.
  Housing: Protection class IP69K. Body in black PA66, fiber glass reinforced. IK10 shocks proof.
  Operation: Microprocessor electronic thermostat.
  Sensing element: NTC or Pt100 sensor, 2m standard cable length.
  Identification: Identification label on backside.
  Contact: SPST. 16A (2.6), 250VAC.
  Minimum storage temperature: -35°C (-30°F).
  Maximum ambient temperature: 60°C (140°F).

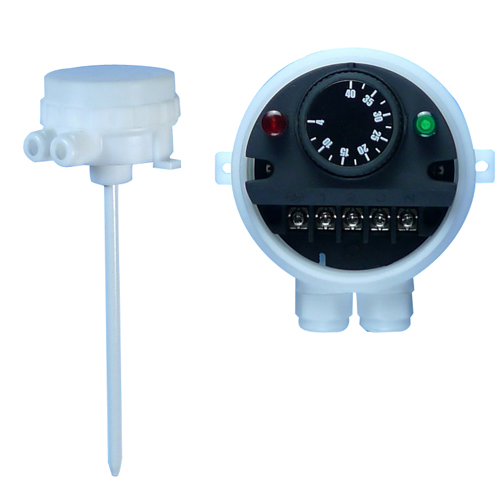

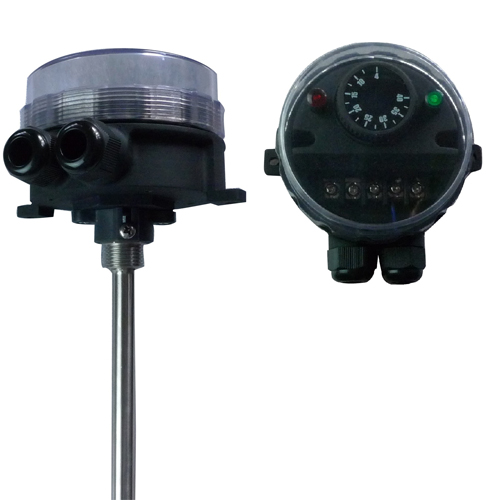

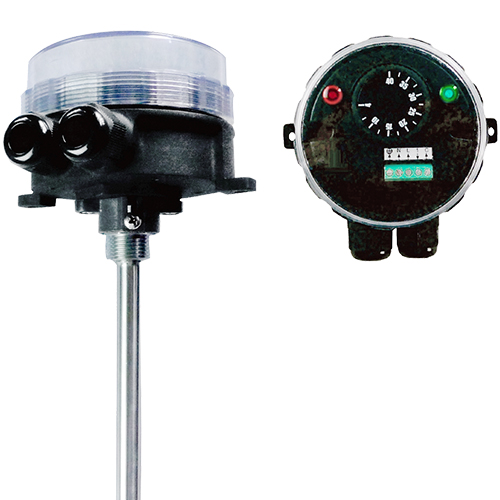

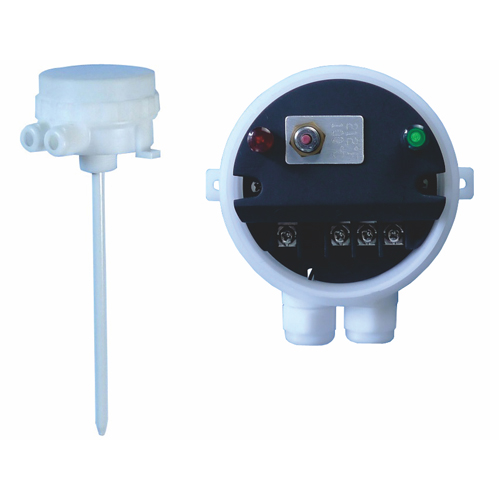

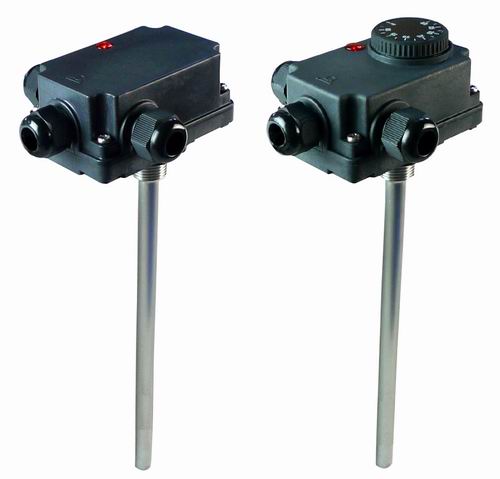

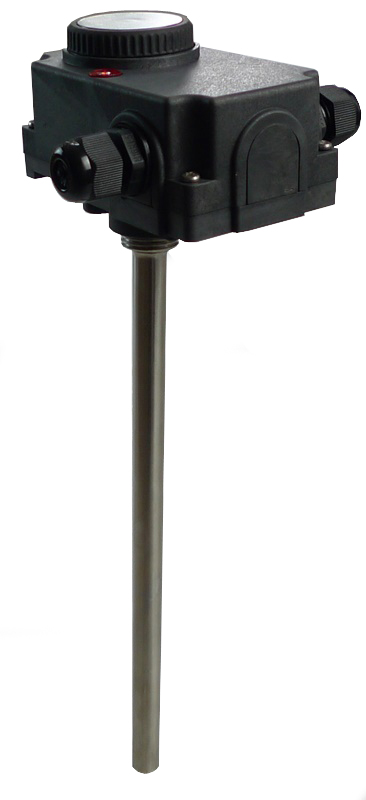

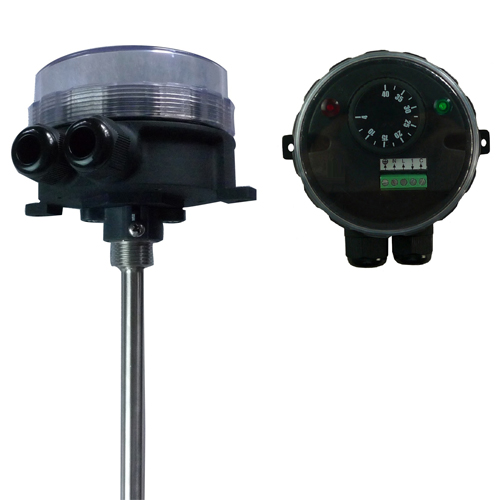

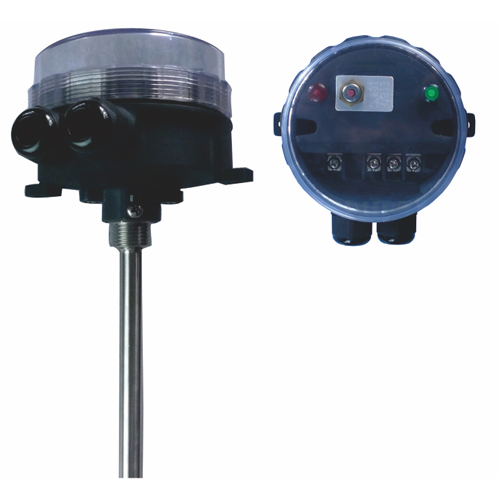

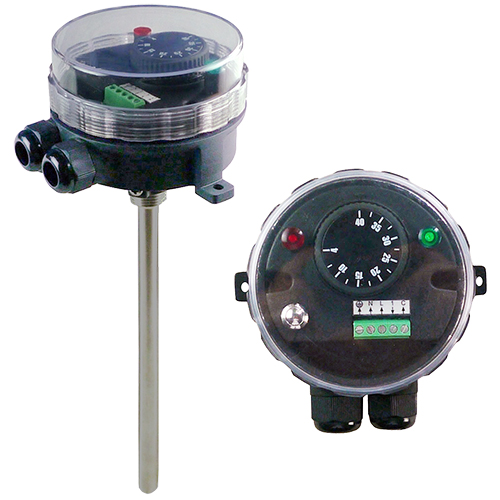

Rod thermostats, with built-in pilot light and 2 or 3 M20 cable glands, stainless steel or nickel plated brass pocket

Applications: Ambient temperature control in professional premises where good protection against liquid splashes or dust is requested. Output with 2 or 3 cable glands, allowing direct connection of heat tracing cables for freeze protection.
Housing: Reduced height, IP44, black PC-ABS fiberglass reinforced, UL94V0.
Set point adjustment: By printed knob for external adjustment models, by screw driver and printed dial on internal adjustment models.
Adjustment ranges: -35+35°C, 4-40°C, 30-90°C, 30-110°C.
Contact: SPNC. Electrical rating: 20A 250V.

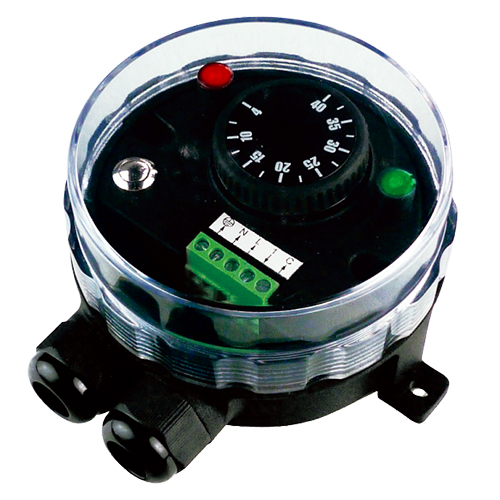

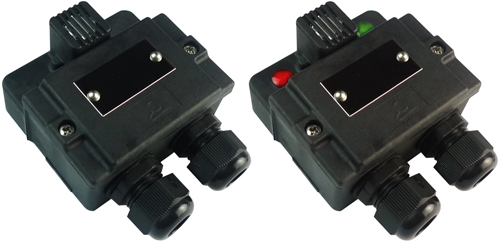

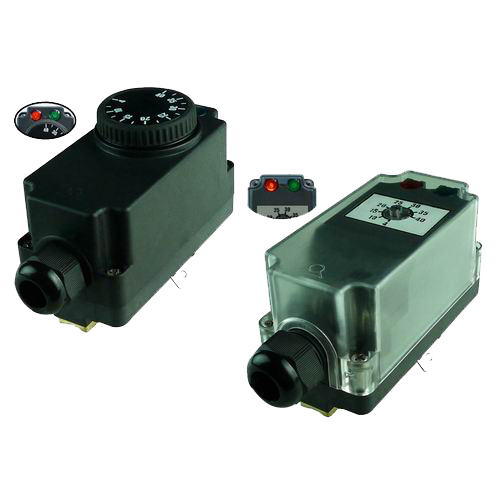

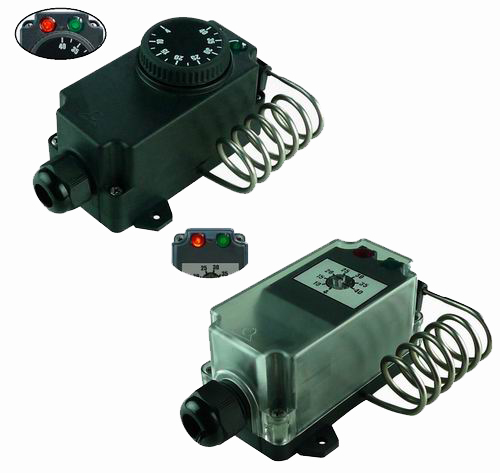

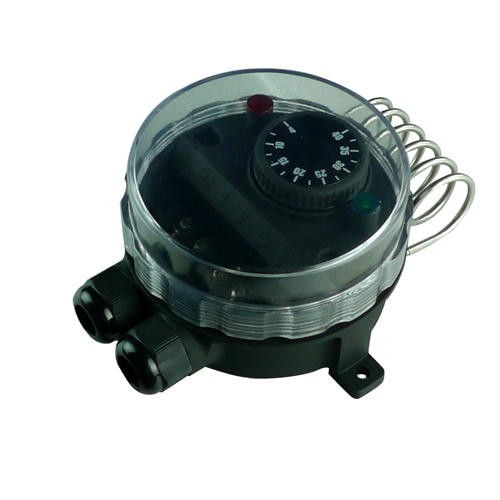

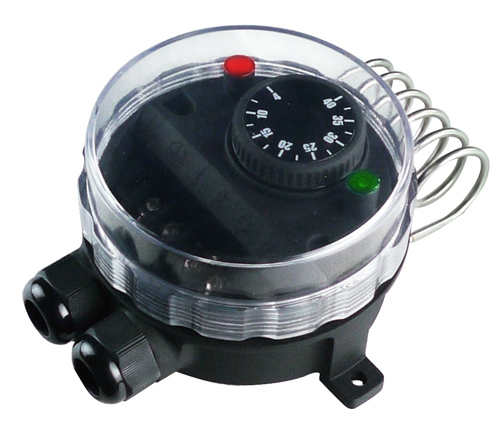

“Pigtail”bulb room thermostats, with 2 built-in pilot lights

Housing: PC-ABS, fiber glass reinforced, UL94V0. High impact and UV resistance, with waterproof gasket on thermostat shaft for external adjustment types. Internal adjustment types have a PC transparent cover, to visualize the pilot lights and the set point adjustment.
Adjustment ranges: -35+35°C, 4-40°C.
Pilot lights: Allow to visualize the power supply and thermostat contact position (230V Phase and Neutral power supply is mandatory for pilot lights).
Contact: SPNC (open on temperature rise).
Electrical rating: 20A 250V.

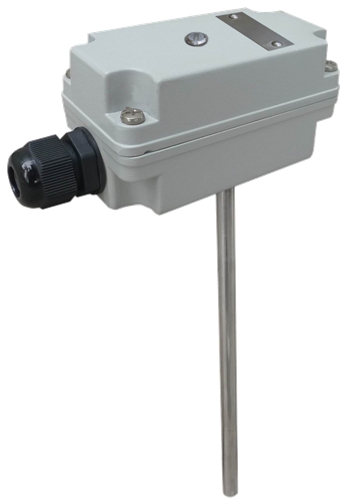

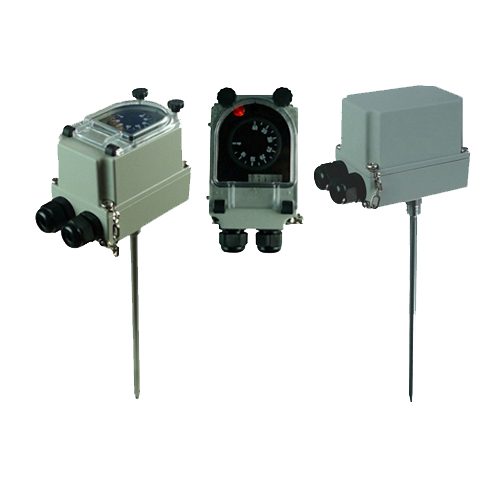

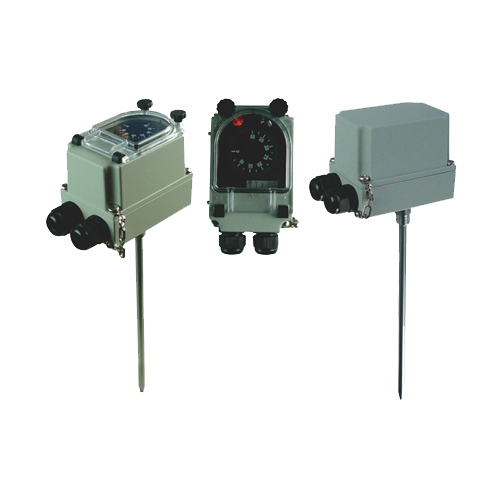

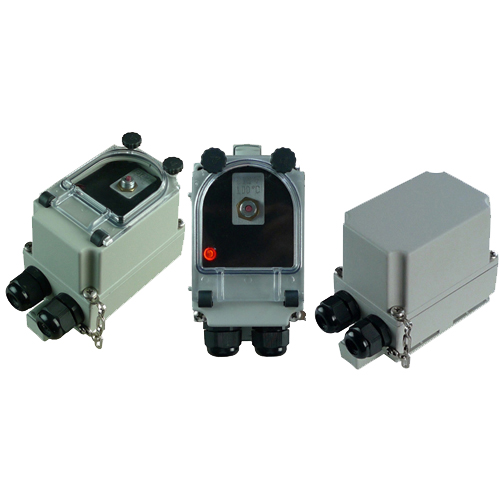

3 pole rod thermostats, temperature control

Applications: These liquid expansion rod thermostats can be installed inside pockets as immersion thermostats in pipelines and containers, and to control temperature in air ducts.

• Internal adjustment is convenient for products that must not be frequently adjusted.
• Insensibility to strong vibrations. Housing: Aluminum, IP65, IK10. Grey RAL7032 epoxy painting. Stainless steel captive cover screws. Captive aluminum lid.
  Contact: 3PST.
  Electrical rating, resistive loads: 16A 250V, 50 ~60Hz: >100000 cycles, 20A 250V, 50 ~60Hz: ≥ 50000 cycles, 10A 400V, 50 ~60Hz: ≥ 50000 cycles. Maximum ambient temperature: 60°C (140°F).

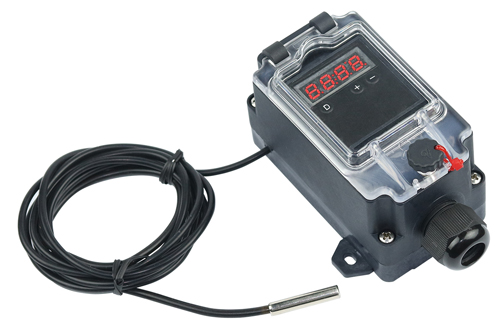

Digital display electronic controller, ON-OFF action, IP69K and IK10 enclosure, wall mounting.

This ultra-compact electronic temperature controller was designed to provide the simplest and instinctive end user setting.
Enclosure: 100 x 56 x 63 mm. In black PA66, impact resistant (IK10), UV resistant, IP69K.
Power supply: 220 to 250V, 50Hz or 60Hz.
Relay output: Single pole, 16A250V res.
Ambient: -20 + 60°C, 10-90% RH.
Power: <4W.
Electrical connections: -Power input for electronic board: Neutral, phase, ground, with 2.5 mm² terminals. -Relay input and output: 2.5 mm² terminals. -Temperature sensor: three 2.5 mm² screw terminal.

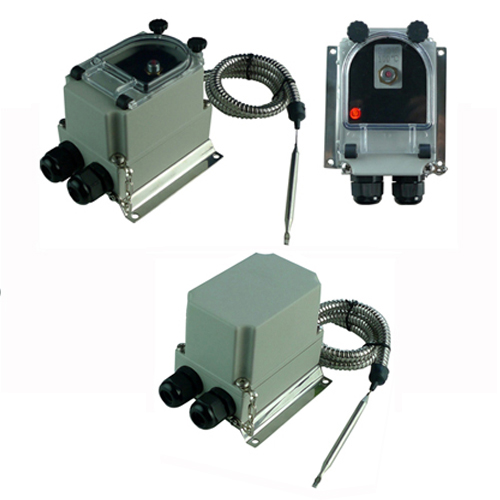

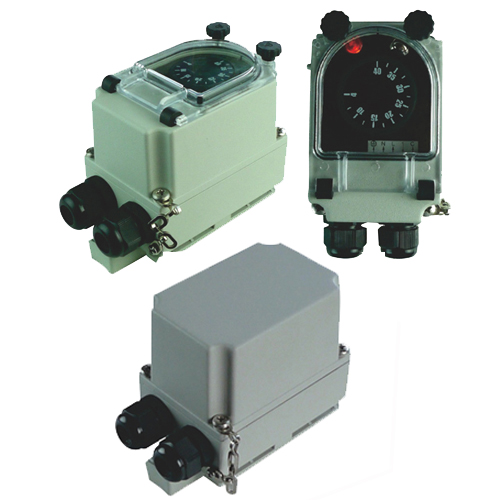

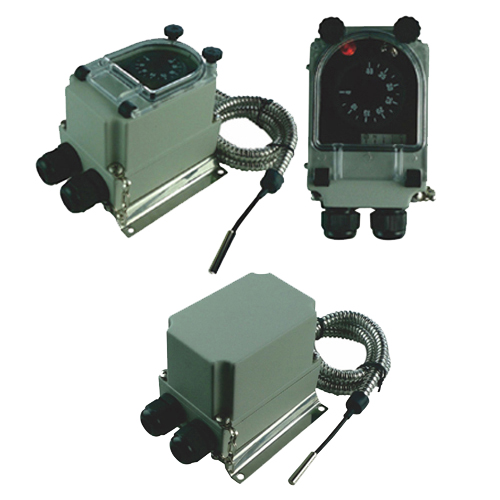

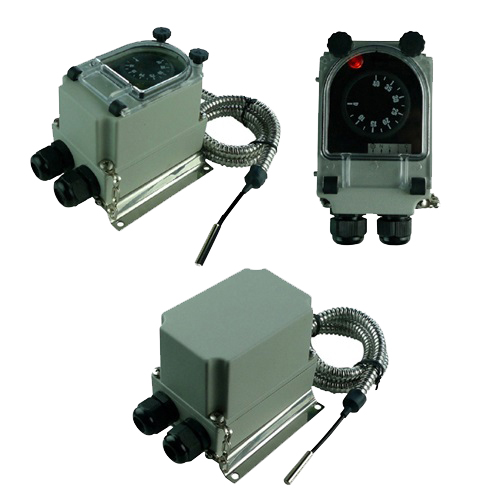

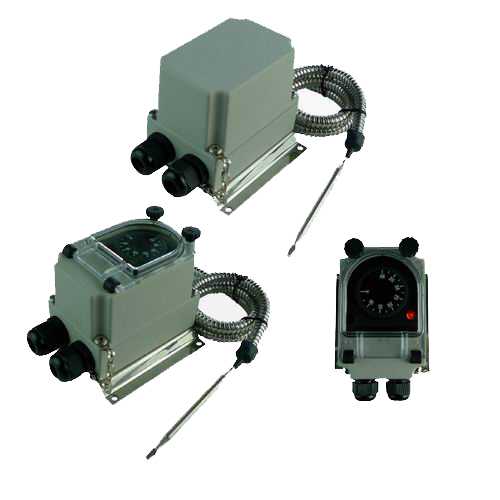

3 Pole bulb and capillary thermostats

Applications: Remote control in usual industrial application and environment,not hazardous areas, when it is requested to control a 3 phases heating circuit.
Housing: Aluminum, IP65, IK10. Grey RAL7032 epoxy painting. Stainless steel captive cover screws. Captive aluminum lid.
Contact: 3PST, open on temperature rise.
Electrical rating, resistive loads:
16A 250V, 50 ~60Hz: >100000 cycles,
20A 250V, 50 ~60Hz: ≥ 50000 cycles,
10A 400V, 50 ~60Hz: ≥ 50000 cycles.
Minimum Storage temperature: -35°C (-30°F).
Maximum ambient temperature: 60°C (140°F).

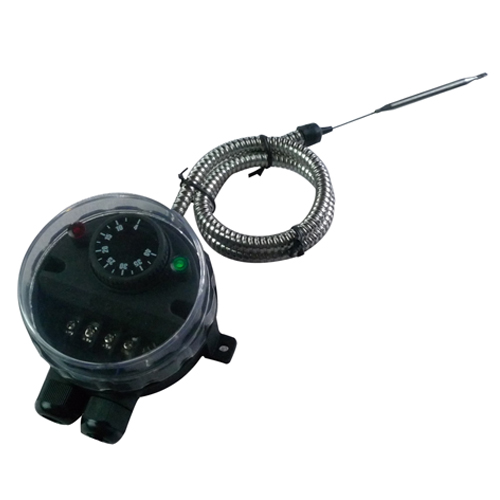

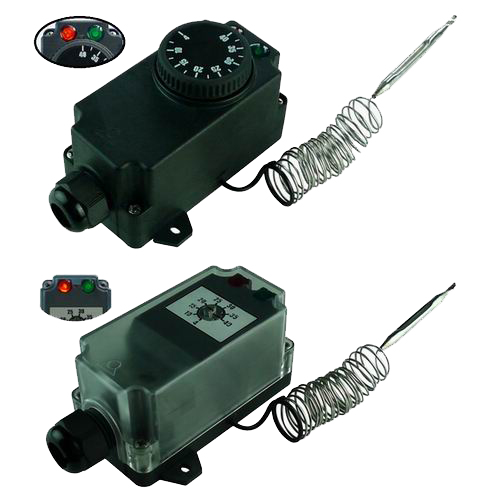

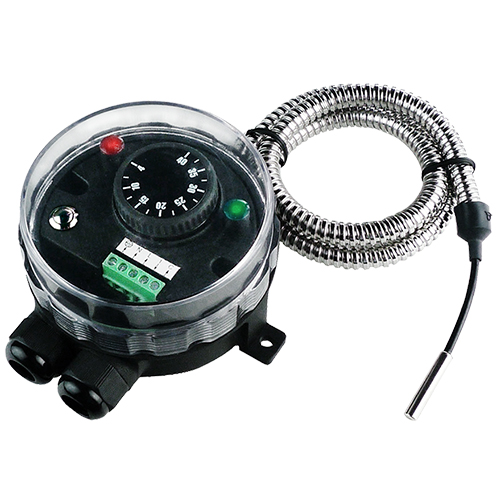

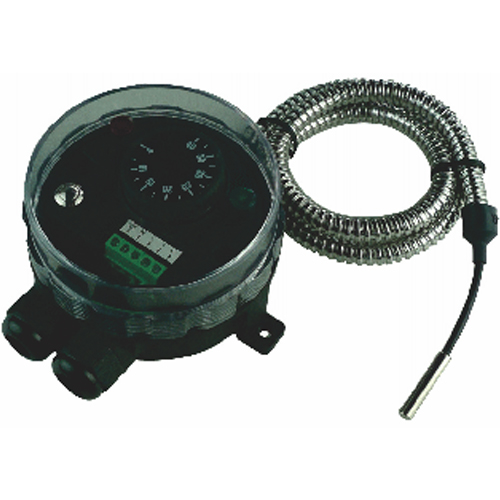

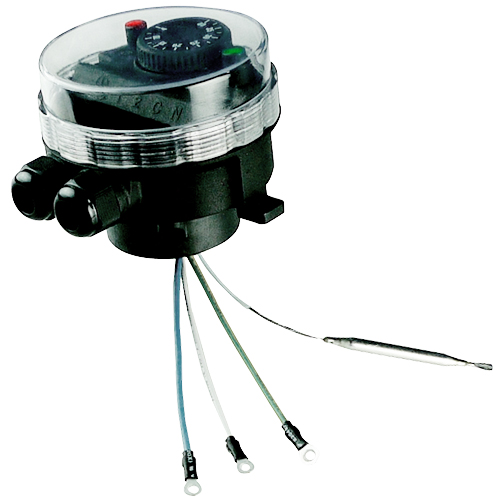

Bulb and capillary thermostats, with 2 built-in pilot lights

Housing: PC-ABS, fiberglass reinforced, UL94V0. With waterproof gasket on thermostat shaft for external adjustment types. Internal adjustment types have a PC transparent cover, to visualize the pilot lights and the set point adjustment.
Cable input: M20 cable gland.
Temperature adjustment ranges: -35+35°C, 4-40°C, 30-90°C, 30-110°C, 50-200°C, 50-300°C, 100-400°C, 100-500°C.
Capillary length: 1.5 m.
Pilot lights: Allow to visualize the power supply and thermostat contact position.
Contact: SPNC (open on temperature rise).
Electrical rating: 20A 250V.

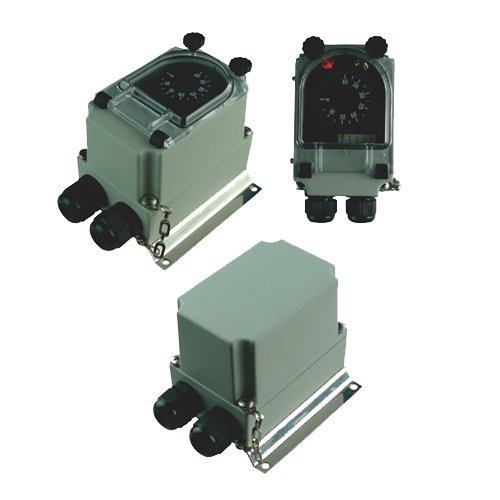

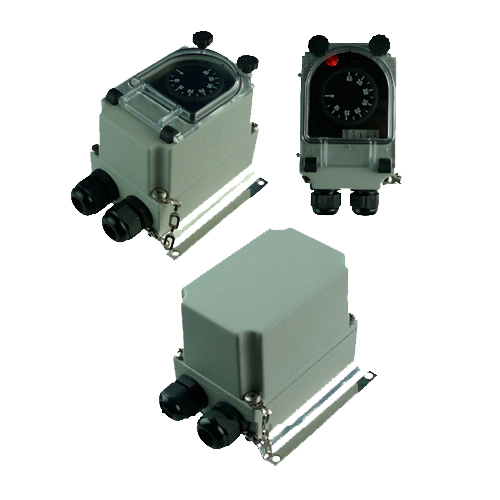

Pipe mounting thermostats

Applications: Pipes surface temperature control in usual industrial applications and environments, (No suitable for hazardous areas) Internal adjustment is convenient for products that must not be frequently adjusted.
Housing: Aluminum, IP65.
Set point adjustment: All types have an adjustable rotation limit system located inside the knob that allows reducing the set point adjustment span. Types with external adjustment have a transparent window.
Contact: SPDT.
Electrical rating: 20A 250V.

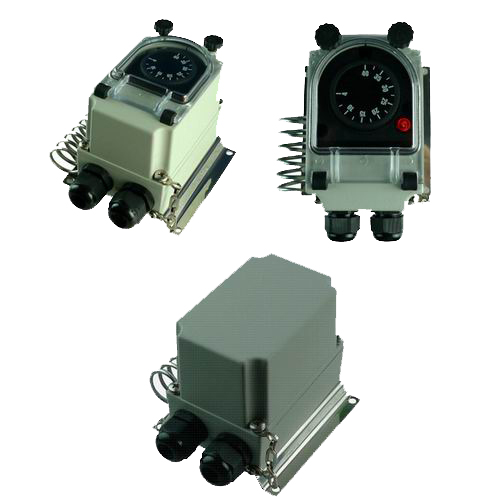

“Pigtail” bulb room thermostats.

Applications:

• Wall mounting for indoor or outdoor temperature control of cold rooms.
• Temperature control of industrial or commercial premises.
• Outdoor temperature control of antifreeze heaters.
• Green houses and livestock stables temperature control. Set point adjustment ranges: 4 - 40°C.
  Set point adjustment: All types have an adjustable rotation limit system located inside the knob that allows reducing the set point adjustment span. Types with external adjustment have a transparent window.
  Contact: SPDT.
  Electrical rating: 20A 250V.

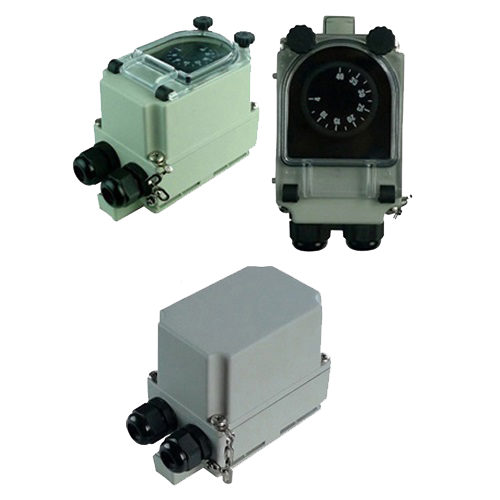

Electronic room thermostats

Housing: Aluminum, IP65, IK10. Grey RAL7032 epoxy painting. Stainless steel captive cover screws. Captive aluminum lid.
Adjustment ranges: -35-35°C, 0-10°C, 4-40°C.
Sensing element: NTC probe, mounted on the side of plastic housing.
Cable input and output: Two M20 cable glands, Black PA66. 2 phase power supply (Line + Neutral, 220-250V, 50Hz-60Hz) are mandatory.
Earthing: Internal and external screw terminal.
Contact: SPST. 16A (2.6), 250VAC.
Minimum storage temperature: -35°C (-30°F).
Maximum ambient temperature: 60°C (140°F).

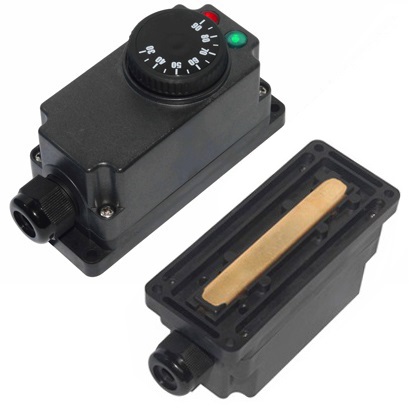

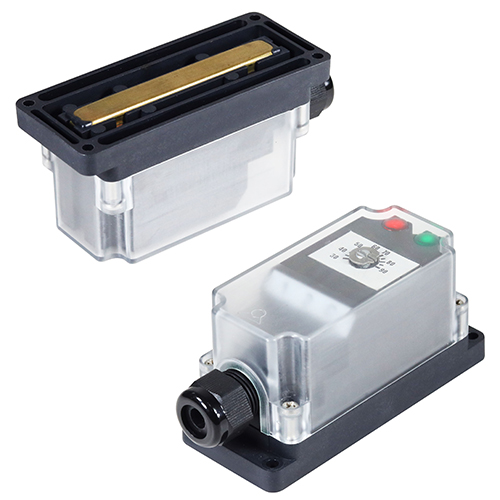

Dia. 30 to 70mm pipe-mounting thermostats, with 2 built-in pilot lights

This thermostat is designed with a V shaped temperature sensitive nickel plated brass backside to improve thermal contact with the pipe, and two lugs for spring mounting.
Housing: PC-ABS, fiberglass reinforced, UL94V0. High impact and UV resistance, with waterproof gasket on thermostat shaft for external adjustment types. Internal adjustment types have a PC transparent cover, to visualize the pilot lights and the set point adjustment.
Adjustment ranges: 30-90°C, 30-110°C.
Contact: SPNC.
Electrical rating: 20A 250V.

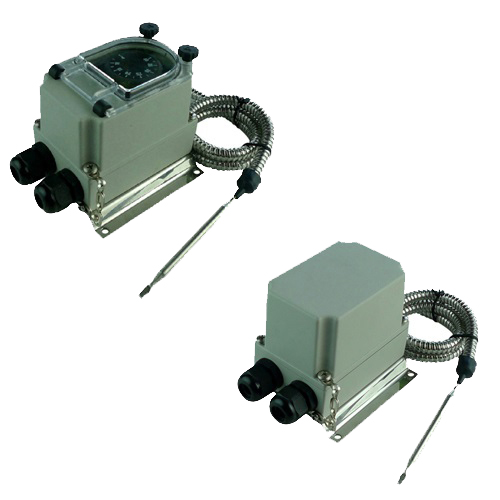

Bulb and capillary thermostats

Applications: Remote control in usual industrial applications and environments, not hazardous areas. Internal adjustment is convenient for products that must not be frequently adjusted.

Set point adjustment ranges: up to 500° C.
Set point adjustment: All types have an adjustable rotation limit system located inside the knob that allows reducing the set point adjustment span. Types with external adjustment have a transparent window.
Contact: SPDT.
Electrical rating: 20A 250V.

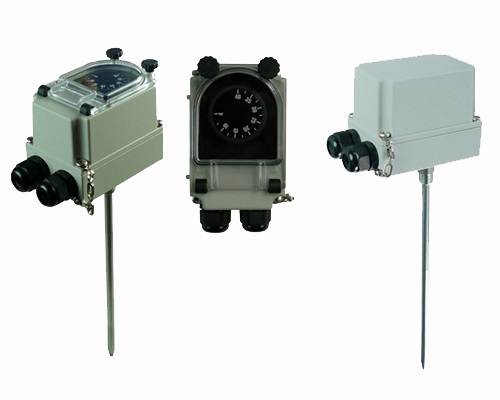

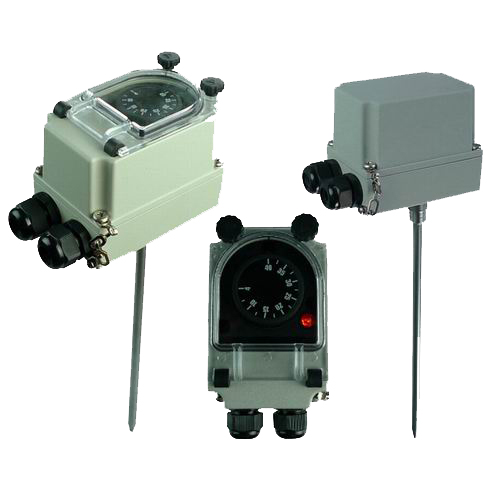

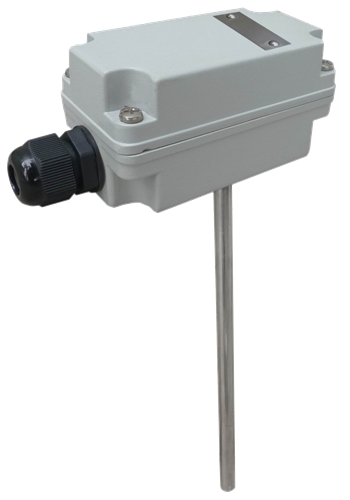

Rod thermostats, temperature control

Applications: These liquid expansion rod thermostats can be installed inside pockets as immersion thermostats in pipelines and containers, and for monitoring temperature in air ducts, in usual industrial applications and environments. (Not suitable for hazardous areas).

• Internal adjustment is convenient for products that must not be frequently adjusted.
• Insensibility to strong vibrations.
  Housing: Aluminum, IP65.
  Set point adjustment ranges: up to 500° C.
  Contact: SPDT.
  Electrical rating: 20A 250V.

Pipe mounting 3 pole thermostats

Applications: Pipes surface temperature control in usual industrial applications and environments, to control 3 pole heating circuits.
Housing: Aluminum, IP65, IK10. Grey RAL7032 epoxy painting. Stainless steel captive cover screws. Captive aluminum lid.
Set point adjustment ranges: 0-60°C; 0-90°C; 30-90°C; 30-110°C.
Action: Temperature control, On-Off action.
Contact: 3PST.
Electrical rating, resistive loads:
16A 250V, 50 ~60Hz: >100000 cycles,
20A 250V, 50 ~60Hz: ≥ 50000 cycles,
10A 400V, 50 ~60Hz: ≥ 50000 cycles.
Maximum ambient temperature: 60°C (140°F).

“Pigtail”bulb room thermostats

Applications: Equipment requesting a very strong resistance to water ingress.
Housing: Protection class IP 66 upon EN 60529. Body in black PA66, fiber glass reinforced. Mechanical impact resistance: IK10. High UV resistance.
Sensing element: Liquid filled “pigtail” stainless steel bulb.
Set point adjustment ranges: 4-40°C.
Contact: SPDT.
Electrical rating, resistive loads:

• Open on temperature rise contact (C-1).
• Close on temperature rise contact (C-2). Maximum ambient temperature: 60°C.

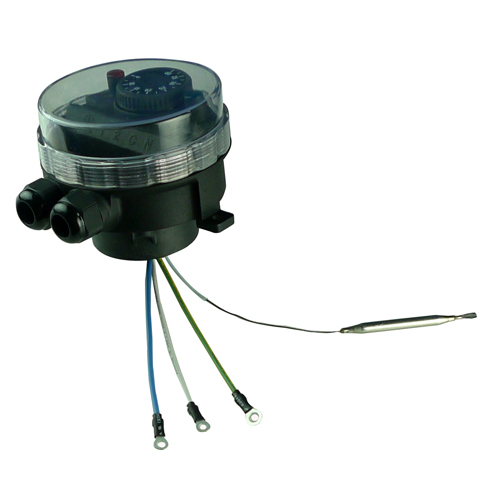

Bulb and capillary thermostats

Applications: Equipment requesting a very strong resistance to water ingress.
Housing: Protection class IP66. Body in black PA66, fiber glass reinforced.
Mechanical impact resistance: IK10.
Sensing element: Liquid expansion bulb and capillary.
Set point adjustment ranges:-35+35°C; -10+40°C; 4-40°C; 0-60°C; 0-90°C; 30-90°C; 30-110°C; 50-200°C; 50-300°C; 100-400°C; 100-500° C.
Contact: SPDT.
Electrical rating, resistive loads:

• Open on temperature rise contact (C-1).
  16A 250V, 50 ~60Hz: >100000 cycles,
  20A 250V, 50 ~60Hz: ≥ 50000 cycles,
  10A 400V, 50 ~60Hz: ≥ 50000 cycles.
• Close on temperature rise contact (C-2): 6A 250V 50 ~60Hz: >100000 cycles.

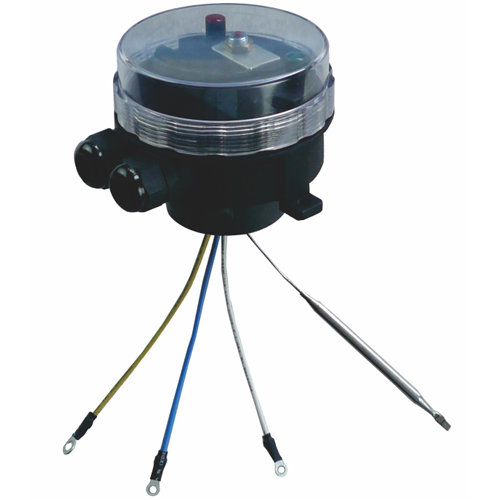

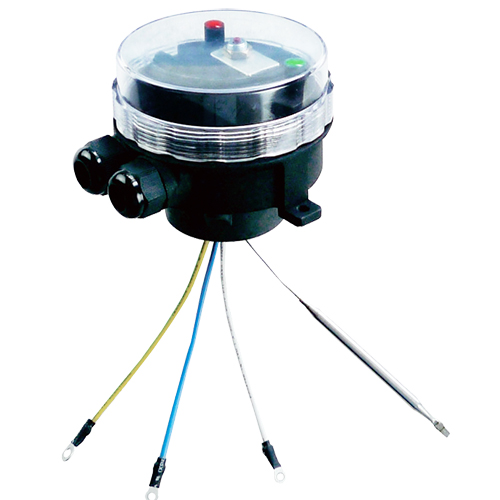

Manual reset electronic room adjustable limiter

Applications: - Wall mounting for indoor or outdoor high temperature alarm of cold rooms.

• High temperature alarm of industrial or commercial premises.
• Outdoor temperature control of antifreeze heaters.
• High temperature alarm of green houses and livestock stables.
  Housing: Aluminum, IP65, IK10.
  Sensing element: NTC probe.
  Contact: SPST. 16A (2.6), 250VAC.
  Electrical life: >100.000 cycles.
  Minimum storage temperature: -35°C (-30°F).
  Maximum ambient temperature: 60°C (140°F).

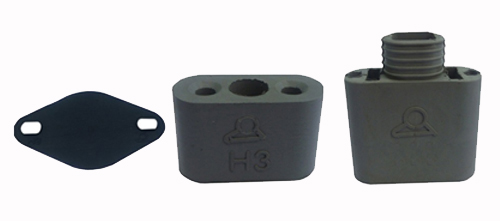

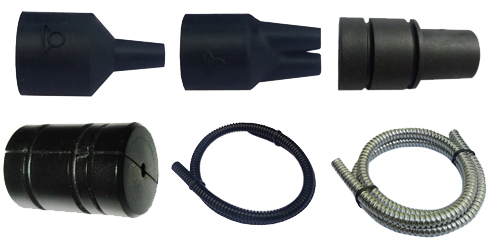

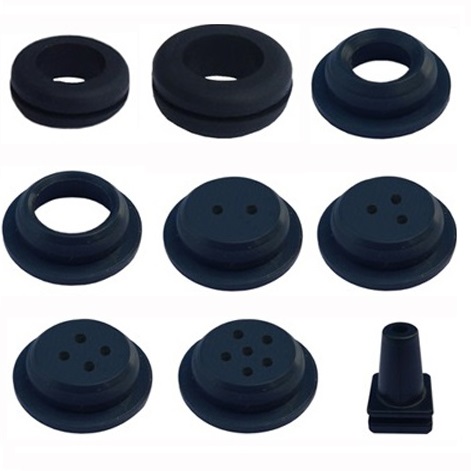

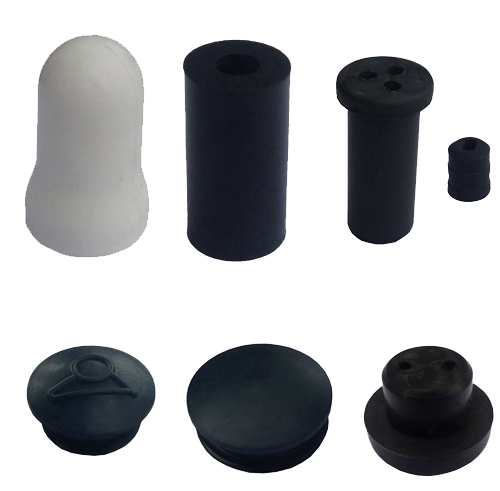

Silicone boots and grommets for applications in heating equipment

Tube end caps: Used to protect the open end of tubes or heat trace wire end.
Holes caps: Used to seal a hole in aluminum or plastic enclosure.
Pockets output grommets: They are used to hold probes or electronic thermostats bulbs inside a pocket or a tube, while protecting them against the sharp edges of the tip.
Flammability: UL 94-V0.
Hardness: 60 Shore A.
Color: black. Other colors available.

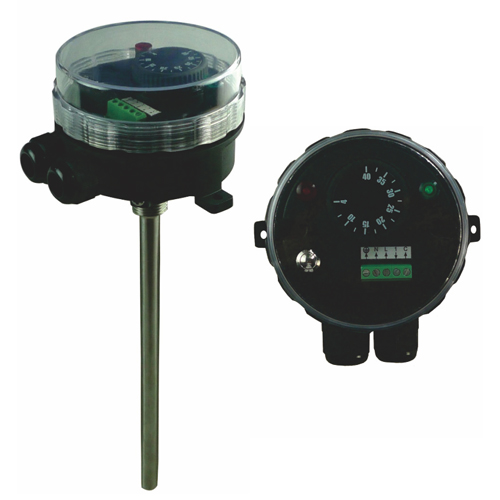

Rod thermostats, temperature control

Applications: Equipment requesting a very strong resistance to water ingress.
Housing: Protection class IP 66 upon EN 60529. Body in black PA66,fiber glass reinforced. Mechanical impact resistance: IK10. High UV resistance.
Set point adjustment ranges: 4-40°C; 0-60°C; 0-90°C; 30-90°C; 30-110°C.
Contact: SPDT.
Electrical rating, inductive loads:

• Open on temperature rise contact (C-1): 2.6A 250V, 50 ~60Hz: >100000 cycles.
• Close on temperature rise contact (C-2): 0.6A 250V, 50 ~60Hz: >100000 cycles.
  Minimum storage temperature: -35°C (-30°F).
  Maximum ambient temperature: 60°C (140°F).

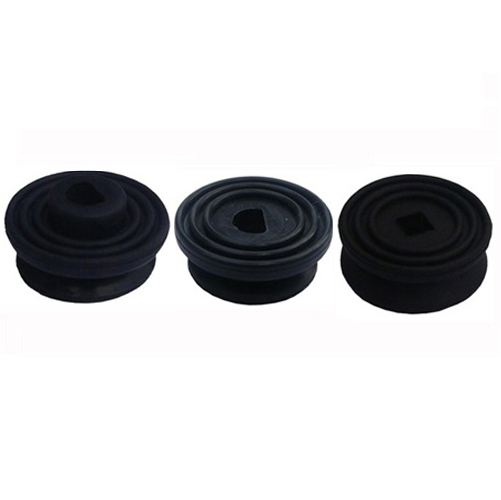

Water ingress protection gaskets for thermostats shafts.

Used to mount a thermostat or switch shat through its mounting panel, ensuring a good water ingress protection resistance. The gasket, sleeved on the shat, is compressed between the front panel and a counter-plate. A light lubrication of the counter-plate and of the inner face of front panel is recommended.
Flammability: UL 94-V0.
Hardness: 60 Shore A.
Color: black. Other colors available.

Immersion heater thermostats

Applications: Equipment requesting a very strong resistance to water ingress.
Housing: Protection class IP66 upon EN 60529. Body in black PA66, fiber glass reinforced. Mechanical impact resistance: IK10. High UV resistance.
Sensing element: Liquid expansion bulb and capillary.
Set point adjustment ranges: 0-60°C; 0-90°C; 30-90°C; 30-110°C.
Contact: SPDT.
Electrical rating, inductive loads:

• Open on temperature rise contact (C-1): 2.6A 250V, 50 ~60Hz: >100000 cycles.
• Close on temperature rise contact (C-2): 0.6A 250V 50 ~60Hz: >100000 cycles.
  Maximum ambient temperature: 60°C (140°F).

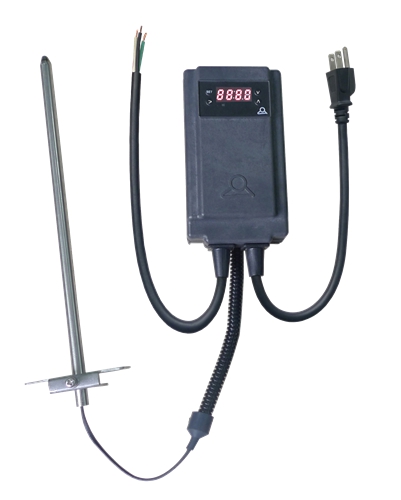

Hand held or wall mounting digital controller

Ambient temperature measurement (digital).
Ingress protection rating: IP54.
Adjustment: by up, down and set keys.
Display: selectable in °C or °F (4 digits).
Temperature sensor: Pt100 RTD.
Electrical contact: SPST, 16A 250V.

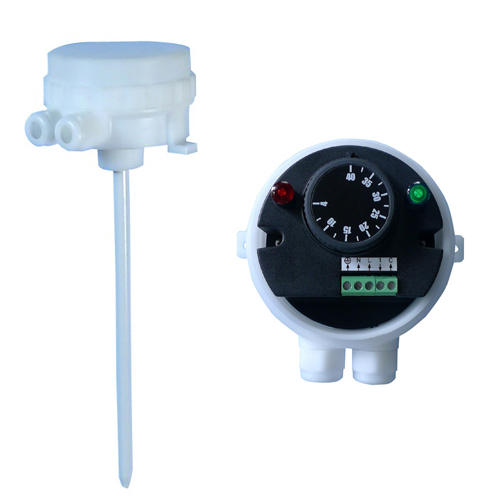

Adjustable set point rod thermostat, with high corrosion resistance housing,specifically designed for surface treatment baths, and highly basic or acid corrosive liquids or environments.

Main applications: Temperature control for surface treatment or corrosive liquid baths, sea water environment, livestock premises.
Housing: Protection class IP66.
Electrical connections: Cable input/output by two M20 cable glands.
Adjustment ranges: 4-40°C; 0-60°C; 30-90°C; 30-110°C.
Electrical contact: SPDT.
Electrical rating, resistive load:

• Open on temperature rise contact (C-1) 16A (2.6) 250VAC.
• Close on temperature rise contact (C-2) 6A (0.6) 250VAC. Excellent mechanical strength of the housing (IK10).

Fixed setting manual reset limiter, pipe mounting

Applications: these liquid expansion pipe surface manual reset limiters can be installed inside pockets as immersion thermostats in pipelines and containers, and as high limit safety in air ducts.

Housing: Aluminum, IP65, IK10. Grey RAL7032 epoxy painting.
Set point calibration value: 80±8°C, 90±8°C, 110±8°C.
Electrical connections: Inside, on screw terminal connection block.
Contact: Single pole, open on rise (SPNC).
Electrical rating: 16A res. 250/400VAC.
Maximum ambient temperature: 60°C (140°F).

Hand held or wall mounting thermostat.

Distance temperature measurement, ambient temperature measurement (electronic).
Ingress protection rating: IP54.
Adjustment: Printed knob, with min or max position adjustment.
Mounting: wall mounting.
Mechanical impact resistance: IK05 (EN 62262).
Flammability: UL94-V0.
Electrical contact: 16 A , 250V.

High temperature edge grommets and sleeved grommets

Flammability: UL 94-V0.
Hardness: 60 Shore A.
Color: black. Other colors available.

Electronic temperature control, remote sensor

Applications: temperature control with reduced differential, on-off action, in usual industrial applications and environments, not hazardous areas.
Housing: Aluminum, IP65, IK10. Grey RAL7032 epoxy painting.
Adjustment ranges: -35-35°C; 0-10°C; 4-40°C; 30-90°C; 30-110°C; 50- 200°C; 50-300°C; 100-400°C; 100-500°C.
Sensing element: NTC or Pt100 probe.
Cable input and output: two M20 cable glands, black PA66.
Earthing: internal and external screw terminal.
Contact: SPST. 16A (2.6), 250VAC.
Electrical life: >100.000 cycles.
Maximum ambient temperature: 60°C (140°F).

Heat conductive silicone parts (Thermal bridges)

These parts, made in thermally conducive silicone are designed to transfer heat from a heating element to an electronic sensor, thermostat bulb, or bimetal. Their use limits the thermal overshoots.
Flammability: UL94VO.
Held in temperature: 220℃.
Hardness Shore A: 80.
Color: Grey.
Thermal conductivity: 2.2W/ m.°K.

Pipe mounting electronic temperature control.

Application: Pipes surface temperature control in usual industrial applications and environments, when a low differential is requested (No suitable for hazardous areas).
Housing: Aluminum, IP65, IK10. Grey RAL7032 epoxy painting. Stainless steel captive cover screws. Captive aluminum lid.
Set point adjustment ranges: 4-40°C; 30-90°C.
Action: temperature control, On-Off action.
Sensing element: NTC sensor inside aluminum bracket in contact with the pipe surface.
Cable input and output: two M20 cable glands, black PA66.
Contact: SPST. 16A (2.6), 250VAC.
Minimum storage temperature: -35°C (-30°F).

Electronic temperature control, rod

Applications: these rod thermostats electronic sensor can be installed inside pockets as immersion thermostats in pipelines and containers. Very low differential. On-Off action.
Housing: aluminum, IP65, IK10. Grey RAL7032 epoxy painting.
Adjustment ranges: -35-35°C; 0-10°C; 4-40°C; 30-90°C; 30-110°C;50- 200°C; 50-300°C; 100-400°C; 100-500°C.
Sensing element: NTC or Pt100 sensor located at the end of a dia.8mm stainless steel rod.
Contact: SPST. 16A (2.6), 250VAC.
Maximum ambient temperature: 60°C (140°F).

Electronic room thermostats

Applications: equipment requesting a very strong resistance to water ingress. Very small differential.
Housing: Protection class IP66 upon EN 60529. Body in black PA66, fiber glass reinforced. Mechanical impact resistance: IK10. High UV resistance.
Sensing element: NTC probe, mounted on the top of the plastic housing.
Set point adjustment ranges: -35-35°C, 0-10°C, 4-40°C.
Contact: SPST. 16A (2.6), 250VAC.
Maximum ambient temperature: 60°C (140°F).

Fixed setting manual reset bulb and capillary limiter

Applications: remote control in usual industrial applications and environments, not hazardous areas, for use as high limit safety. Sealed temperature set point.
Housing: Aluminum, IP65, IK10. Grey RAL7032 epoxy painting.
Set point calibration value: 80 ± 8°C, 90 ± 8°C, 110 ± 8°C, 130 ± 8°C,150 ± 8°C, 175 ± 8°C, 220 ±11°C, 270 ±13°C, 300 ±15°C.
Sensing element: Liquid expansion bulb and capillary.
Electrical connections: Inside, on screw terminal connection block.
Contact: Single pole, open on temperature rise (SPNC).
Electrical rating: 16A res. 250/400VAC.
Maximum ambient temperature: 60°C (140°F).

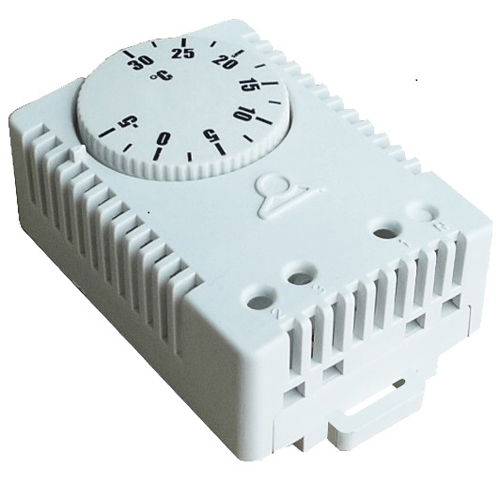

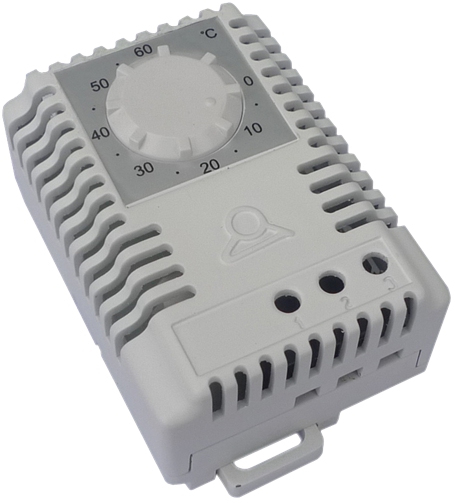

Electrical cabinet ambient temperature thermostats, Din Rail mounting.

Main use: These models have been designed to control the temperature inside electrical cabinets, being mounted on their DIN rail.
Temperature ranges: -10+20°C; -10+50°C; 0-60°C; 5-35°C; 20+80°C.
Sensing element: bimetal.
Contact type: snap-action contact, open or close on temperature rise, 10(2)A 250VAC, 15(2)A 120VAC.
Electrical life: > 10.000 cycles at rated values.
Contact resistance: < 10mOhm.
Electrical connection: 3 screw terminals, for 1.5 mm² wires.
Operating temperature range: - 20 to + 80°C.
Ingress protection: IP30.

Electronic thermostats, remote sensor, IP66 enclosure in PA66 and PC.

Applications: Equipment requesting a very strong resistance to water ingress.Very small differential.
Housing: Protection class IP 66 upon EN 60529. Body in black PA66, fiber glass reinforced. Mechanical impact resistance: IK10. High UV resistance.
Sensing element: NTC or Pt100 sensor.
Set point adjustment ranges: -35-35°C; 0-10°C; 4-40°C; 30-90°C; 30-110°C; 50-200°C; 50-300°C; 100-400°C; 100-500°C.
Contact: SPST. 16A (2.6), 250VAC.
Maximum ambient temperature: 60°C (140°F).

Fixed setting manual reset limiter, rod

These rod manual reset limiters can be installed inside pockets as immersion thermostats in pipelines a liquid expansion and containers.
Housing: Aluminum, IP65, IK10. Grey RAL7032 epoxy painting.
Action: Fail safe manual reset high temperature limit.
Set point calibration value: 80±8°C, 90±8°C, 110±8°C, 130±8°C, 150±8°C, 175±8°C, 220±11°C, 270±13°C, 300±15°C.
Electrical connections: Inside, on screw terminal connection block.
Contact: Single pole, open on temperature rise (SPNC).
Electrical rating: 16A res. 250/400VAC.
Maximum ambient temperature: 60°C.

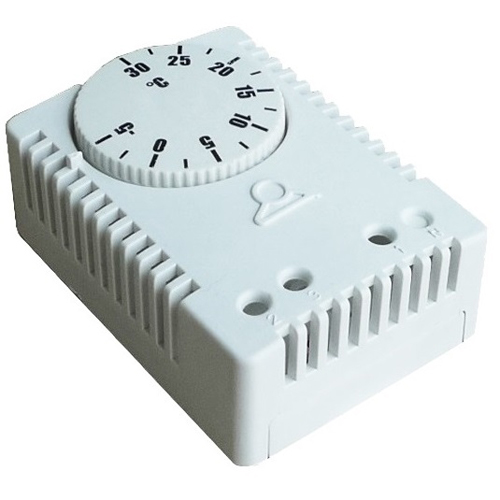

Miniature room temperature thermostats wall mounting, home appliance style

Main use: These models have been designed to control electrical equipment temperature. They are designed for wall mounting with 2 backside screws.
Temperature ranges: -10+50°C; 0-60°C; 20+80°C.
Sensing element: bimetal.
Contact type: snap-action contact, open or close on temperature rise,10(2)A 250VAC, 15(2)A 120VAC.
Electrical life: > 100 000 cycles at rated values.
Contact resistance: < 10mOhm.
Electrical connection: 4 screw terminals, for 1.5 mm² wires.
Operating temperature range: - 20 to + 80°C.
Ingress protection: IP30.

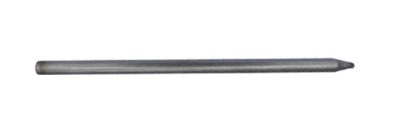

One end closed SUS 304L or 316L pocket tubes

Tip: TIG welded conical shrinking, leak test made at 100%.
Diameter: 8 x 7 mm, compatible with stainless steel fittings.
Special length or other diameter: On request.
Option: can be factory welded on bottom plates of stainless steel fittings.

Electronic thermostats, rod sensor

Applications: Equipment requesting a very strong resistance to water ingress. Very small differential.
Housing: Protection class IP 66 upon EN 60529. Body in black PA66, fiber glass reinforced. Mechanical impact resistance: IK10. High UV resistance.
Set point adjustment ranges: 4-40°C; 30-90°C; 30-110°C.
Sensing element: Dia. 5mm NTC sensor (10KOhms @25°C).
Electrical connections: Inside, on screw terminal connection block.
Contact: SPST. 16A (2.6), 250VAC.
Minimum storage temperature: -35°C (-30°F).
Maximum ambient temperature: 60°C (140°F).

Manual reset electronic adjustable limiter, remote sensor

Applications: Temperature high limit, in usual industrial application and environment, non-hazardous areas.
Housing: aluminum, IP65, IK10. Grey RAL7032 epoxy painting. Stainless steel captive cover screws. Captive aluminum lid.
Operation: Microprocessor manual reset electronic limiter, with adjustable set point.
Adjustment ranges: -35-35°C; 0-10°C; 4-40°C; 30-90°C; 30-110°C; 50- 200°C; 50-300°C; 100-400°C; 100-500°C.
Sensing element: NTC or Pt100 sensor.
Contact: SPST. 16A (2.6), 250VAC.
Electrical life: >100.000 cycles.
Maximum ambient temperature: 60°C (140°F).

Fixed setting ambiance or antifreeze thermostat, IP65, cable gland output, without pilot lights

In these boxes, the thermostat, bimetal disc type, is over-molded, and is thermally insulated from the wall on which it is mounted.
Protection: IP65.
Material: ABS-PC black glass-fiber reinforced.
Output: 2 Cable glands M20, PA66, IP66, for cable from 6 to 12 mm dia.
Electrical rating: Single pole, 8 to 16A 250V (100000 cycles). Contact style can be open on rise or close on rise.
Connection: Built in 4mm ² screw terminal block.

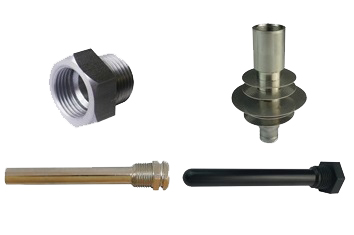

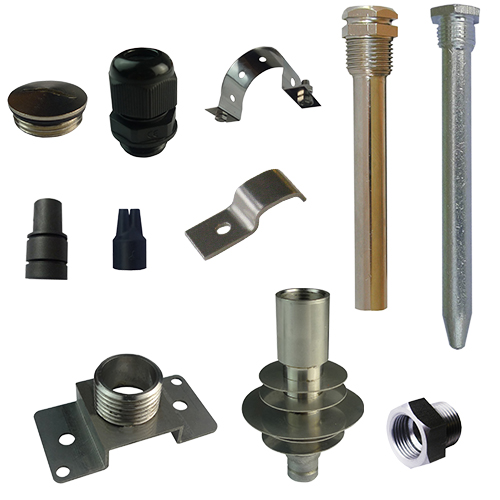

Pockets, flanges, brackets and other accessories

Liquid temperature sensing with rod thermostats, with bulb and capillary thermostat.

• 3/8 x1/2”, 304 stainless steel fitting (fits the 3/8” thread located under the housing).
• Pockets can be made with Aisi 304 Stainless steel, nickel plated brass, NPT plastic.

Electronic thermostats for immersion heaters

Applications: Equipment requesting a very strong resistance to water ingress.The transparent cover allows to visualize the set point and the 2 pilot lights. Very small differential.
Housing: Protection class IP 66 upon EN 60529. Body in black PA66, fiber glass reinforced.
Mechanical impact resistance: IK10. High UV resistance.
Set point adjustment ranges: 4-40°C; 30-90°C; 30-110°C.
Electrical connections: Inside, on screw terminal connection block.
Contact: SPNC. 16A (2.6), 250VAC.
Maximum ambient temperature: 60°C (140°F).

Manual reset electronic rod limiter

Applications: These rod limiters with electronic sensor with adjustable set point can be installed inside pockets as immersion high temperature limits on pipelines and containers, and for monitoring temperature in air ducts, in usual industrial applications and environments.(Not suitable for hazardous areas).
Housing: Aluminum, IP65, IK10. Grey RAL7032 epoxy painting. Stainless steel captive cover screws. Captive aluminum lid.
Adjustment ranges: -35-35°C; 0-10°C; 4-40°C; 30-90°C; 30-110°C; 50- 200°C; 50-300°C.
Sensing element: NTC or Pt100 sensor located at the end of a dia.8mm stainless steel rod.
Contact: SPST. 16A (2.6), 250VAC.

Fixed setting ambiance or antifreeze thermostat, IP65, backside output, without pilot lights

In these boxes, the thermostat is over-molded, and is thermally insulated from the wall on which it is mounted. Its temperature sensing cup is mechanically protected by a grid. It is located in front of the enclosure to be in an area of natural circulation of air.
Protection: IP65.
Material: ABS-PC black glass-fiber reinforced.
Screws: Stainless steel, captive.
Output: Opening on backside for through wall wiring.
Electrical rating: Single pole, 8 to 16A 250V (100,000 cycles).

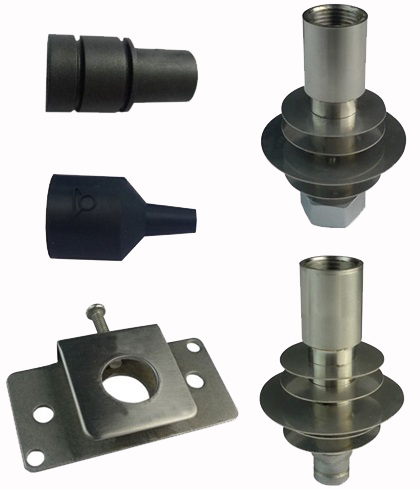

Flanges, brackets and other accessories

• Stainless steel flange for rod output, bulbs, capillary protection output.
• Rod cooler bracket (for air ducts mounting).
• Rod cooler.
• Flexible corrugated tube silicone output.

Low differential electronic rod thermostat, with high corrosion resistance housing, specifically designed for surface treatment baths, and highly basic or acid corrosive liquids or environments

Main applications: Precise temperature control for surface treatment or corrosive liquid baths, sea water environment, livestock premises.
Housing: Protection class IP 66 upon EN 60529.
Adjustment ranges: 4-40°C; 30-90°C; 30-110°C.
Electrical contact: SPNC, Open on temperature rise contact (C-1) 16A (2.6) 250VAC.

Fixed setting manual reset limiter, bulb and capillary

Applications: equipment requesting a very strong resistance to water ingress.
Housing: protection class IP66 upon EN 60529.
Body in black PA66, fiber glass reinforced.
Mechanical impact resistance: IK10.
Action: Fail safe, manual reset high temperature limit.
Set point calibration value: 80 ± 8°C, 90 ± 8°C, 110 ± 8°C,130 ± 8°C, 150 ± 8°C, 175 ± 8°C, 220 ± 11°C, 270 ± 13°C, 300 ± 15°C.
Electrical connections: Inside, on screw terminal connection block.
Contact: Single pole, open on rise (SPNC).
Electrical rating: 16A res. 250/400VAC.

Manual reset electronic adjustable limiter, pipe mounting

Applications: Pipes surface temperature alarm or high limit in usual industrial applications and environments. (No suitable f or hazardous areas).
Housing: Aluminum, IP65, IK10. Grey RAL7032 epoxy painting. Stainless steel captive cover screws. Captive aluminum lid.
Adjustment ranges: 4-40°C; 30-90°C.
Contact: SPST. 16A (2.6), 250VAC. Open or close on temperature rise.
Maximum ambient temperature: 60°C (140°F).
For more technical information ask 2PE2N6 thermostat technical data sheet.

Fixed setting ambiance or antifreeze thermostat, IP65, backside output, two pilot lights

In these boxes, the thermostat is over-molded, and is thermally insulated from the wall on which it is mounted.
Mounting: Wall, by external side brackets.
Protection: IP65.
Material: ABS-PC black glass-fiber reinforced.
Output: Opening on backside for through wall wiring.
Electrical rating: Single pole, 8 to 16A 250V (100000 cycles).
Pilot lights: Allow to visualize the power supply and thermostat contact position.
Connection: Built in 4mm² screw terminal block.

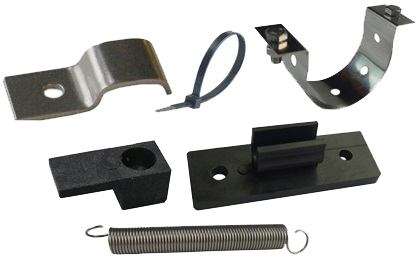

Pipe temperature measurement, bulb and capillary surface mounting accessories

• PA66 Cable tie for pipe mounting thermostats. Max 80°C.
• Stainless steel band for pipe mounting thermostats.
• Spring for pipe mounting thermostat.
• Bulb mounting clips.
• Bulb protective mounting bracket, stainless steel.

Fixed setting manual reset limiter, rod

Applications: Equipment requesting a very strong resistance to water ingress. The transparent cover allows to visualize the set point and the 2 pilot lights.
Housing: Protection class IP 66 upon EN 60529. Body in black PA66, fiber glass reinforced.
Mechanical impact resistance: IK10. High UV resistance.
Action: Fail safe manual reset high temperature limit.
Set point calibration value: 80±8°C, 90±8°C, 110±8°C.
Electrical connections: Inside, on screw terminal connection block.
Contact: Single pole, open on rise (SPNC).
Electrical rating: 16A res. 250/400VAC.
Maximum ambient temperature: 60°C (140°F).

Pockets, flanges, brackets and other accessories

Capillary protection for bulb and capillary thermostats and temperature sensor cables

• Flexible corrugated tube output, through wall air duct mounting plastic.
• Corrugated flexible tube, stainless steel.
• Corrugated flexible tube, PA6, black, max temperature 125°C.

Fixed setting, immersion heater limiter, fail safe

Applications: Equipment requesting a very strong resistance to water ingress.
Housing: Protection class IP 66 upon EN 60529. Body in black PA66, fiber glass reinforced. Mechanical impact resistance: IK10. High UV resistance.
Action: Manual reset limiter, fail safe.
Set point adjustment values: 80 ± 8°C, 90 ± 8°C, 110 ± 8°C.
Electrical connections: Inside, on screw terminal connection block.
Contact: Single pole, open on rise (SPNC).
Electrical rating: 16A res. 250/400VAC.
Maximum ambient temperature: 60°C (140°F).

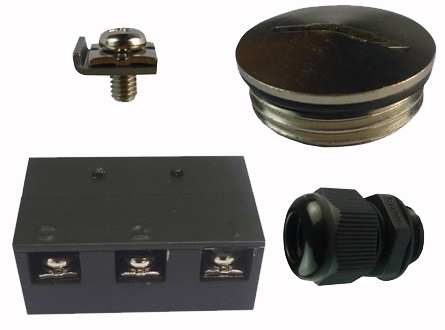

Electrical accessories

• 3 ways connection block.
• M4 ground terminal with M4 saddle.
• M16 and M20 cable gland, IP68, black PA66. Maximum temperature 85°C.
• Nickel plated brass M20 screw cap with gasket.
• Stainless steel M4 screw cap with gasket.

High limit manual reset thermostat, fail safe, with high corrosion resistance housing, specifically designed for surface treatment baths, and highly basic or acid corrosive liquids or environments.

Main applications: High limit manual reset temperature control or surface treatment or corrosive liquid baths, sea water environment, livestock premises.
Housing: Protection class IP 66 upon EN 60529.
Electrical connections: Cable input/output by two M20 cable glands.
Sensing element: Liquid filled bulb.
Electrical contact: SPNC, Open on temperature rise contact (C-1) 16A (2.6) 250VAC.

Adjustable electronic manual reset limiters for immersion heaters

Applications: Equipment requesting a very strong resistance to water ingress.
Housing: Protection class IP 66 upon EN 60529. Body in black PA66, fiber glass reinforced.
Mechanical impact resistance: IK10. High UV resistance.
Set point adjustment ranges: 4-40°C; 30-90°C; 30-110°C.
Sensing element: The 5x 30mm NTC sensor (10KOhms @25°C).
Electrical connections: Inside, on screw terminal connection block.
Contact: SPNC. 16A (2.6), 250VAC.
Maximum ambient temperature: 60°C (140°F).

Manual reset electronic rod adjustable limiter, with high corrosion resistance IP66 housing, specifically designed for surface treatment baths, and highly basic or acid corrosive liquids or environments.

Main applications: Adjustable manual reset temperature limiter for surface treatment or corrosive liquid baths, sea water environment, livestock premises.
Housing: Protection class IP 66 upon EN 60529.
Electrical connections: Cable input/output by two M20 cable glands.
Sensing element: NTC thermistor and microprocessor electronic circuit.
Adjustment ranges: 4-40°C; 30-90°C; 30-110°C.SPNC, Open on temperature rise contact (C-1) 16A (2.6) 250VAC.

Adjustable manual reset electronic room limiters

Applications: Equipment requesting a very strong resistance to water ingress.
Housing: Protection class IP 66 upon EN 60529. Body in black PA66, fiber glass reinforced. Mechanical impact resistance: IK10. High UV resistance.
Set point adjustment ranges: -35-35°C, 0-10°C, 4-40°C.
Contact: SPST. 16A (2.6), 250VAC.
Maximum ambient temperature: 60°C (140°F).

Remote sensor adjustable manual reset electronic limiters

Applications:

• Equipment requesting a very strong resistance to water ingress.
• Use of electronic sensor allows measurement at long distances, which is not possible with bulb and capillary types.
• Manual reset allows the use as high temperature alarm. Housing: Protection class IP 66 upon EN 60529. Body in black PA66, fiber glass reinforced.
  Sensing element: NTC or Pt100 sensor.
  Set point adjustment ranges: -35-35°C; 0-10°C; 4-40°C; 30-90°C; 30-110°C; 50-200°C; 50-300°C; 100-400°; 100-500°C.
  Contact: SPST. 16A (2.6), 250VAC.
  Maximum ambient temperature: 60°C (140°F).

Probe sensor adjustable manual reset electronic limiters

Applications: Equipment requesting a very strong resistance to water ingress. The transparent cover allows visualizing the set point and the 2 pilot lights.
Housing: Protection class IP 66 upon EN 60529. Body in black PA66, fiber glass reinforced.
Set point adjustment ranges: -4-40°C; 30-90°C; 30-110°C.
Sensing element: Dia. 5mm NTC sensor (10KOhms @25°C).
Electrical connections: Inside, on screw terminal connection block.
Contact: SPST. 16A (2.6), 250VAC.
Maximum ambient temperature: 60°C.

Thermostat with external knob adjustment, IP65, with two pilot lights, for industrial jacket and blanket heaters.

Housing: IP65, fiberglass reinforced PA66, UL94V0.
Electrical input: ISO M20 cable gland, Black PA66, IP67, for cables from 6 to 12 mm dia.
Electrical output: 2 dia.4 mm holes, located on the backside face.
Sensing element: Liquid filled bulb, located inside the brass cap.
Adjustment ranges: 30-90°C, 30-110°C.
Electrical connections: Inside, on 2.5mm² screw terminals connection block.
Electrical rating: Open on temperature rise contact (C-1), 16A (2.6) 250VAC, >100.000 cycles.
Maximum ambient temperature: 110°C.

Adjustable set point rod thermostat, with high corrosion resistance housing, specifically designed for surface treatment baths, and highly basic or acid corrosive liquids or environments.

Main applications: Temperature control for surface treatment or corrosive liquid baths, sea water environment, livestock premises. Housing: Protection class IP66. Electrical connections: Cable input/output by two M20 cable glands. Adjustment ranges: 4-40°C; 0-60°C; 30-90°C; 30-110°C. Electrical contact: SPDT. Electrical rating, resistive load:

• Open on temperature rise contact (C-1) 16A (2.6) 250VAC.
• Close on temperature rise contact (C-2) 6A (0.6) 250VAC. Excellent mechanical strength of the housing (IK10).

Bulb and capillary thermostats

Applications: Equipment requesting a very strong resistance to water ingress. Housing: Protection class IP66. Body in black PA66, fiber glass reinforced. Mechanical impact resistance: IK10. Sensing element: Liquid expansion bulb and capillary. Set point adjustment ranges:-35+35°C; -10+40°C; 4-40°C; 0-60°C; 0-90°C; 30-90°C; 30-110°C; 50-200°C; 50-300°C; 100-400°C; 100-500° C. Contact: SPDT. Electrical rating, resistive loads:

• Open on temperature rise contact (C-1). 16A 250V, 50 ~60Hz: >100000 cycles, 20A 250V, 50 ~60Hz: ≥ 50000 cycles, 10A 400V, 50 ~60Hz: ≥ 50000 cycles.
• Close on temperature rise contact (C-2): 6A 250V 50 ~60Hz: >100000 cycles.

Dia. 30 to 70mm pipe-mounting thermostats, with 2 built-in pilot lights

This thermostat is designed with a V shaped temperature sensitive nickel plated brass backside to improve thermal contact with the pipe, and two lugs for spring mounting. Housing: PC-ABS, fiberglass reinforced, UL94V0. High impact and UV resistance, with waterproof gasket on thermostat shaft for external adjustment types. Internal adjustment types have a PC transparent cover, to visualize the pilot lights and the set point adjustment. Adjustment ranges: 30-90°C, 30-110°C. Contact: SPNC. Electrical rating: 20A 250V.

Manual reset electronic rod limiter

Applications: These rod limiters with electronic sensor with adjustable set point can be installed inside pockets as immersion high temperature limits on pipelines and containers, and for monitoring temperature in air ducts, in usual industrial applications and environments. (Not suitable for hazardous areas). Housing: Aluminum, IP65, IK10. Grey RAL7032 epoxy painting. Stainless steel captive cover screws. Captive aluminum lid. Adjustment ranges: -35-35°C; 0-10°C; 4-40°C; 30-90°C; 30-110°C; 50- 200°C; 50-300°C. Sensing element: NTC or Pt100 sensor located at the end of a dia.8mm stainless steel rod. Contact: SPST. 16A (2.6), 250VAC.

Fixed setting manual reset limiter, bulb and capillary

Applications: equipment requesting a very strong resistance to water ingress. Housing: protection class IP66 upon EN 60529. Body in black PA66, fiber glass reinforced. Mechanical impact resistance: IK10. Action: Fail safe, manual reset high temperature limit. Set point calibration value: 80 ± 8°C, 90 ± 8°C, 110 ± 8°C, 130 ± 8°C, 150 ± 8°C, 175 ± 8°C, 220 ± 11°C, 270 ± 13°C, 300 ± 15°C. Electrical connections: Inside, on screw terminal connection block. Contact: Single pole, open on rise (SPNC). Electrical rating: 16A res. 250/400VAC.

Manual reset electronic adjustable limiter, pipe mounting

Applications: Pipes surface temperature alarm or high limit in usual industrial applications and environments. (No suitable f or hazardous areas). Housing: Aluminum, IP65, IK10. Grey RAL7032 epoxy painting. Stainless steel captive cover screws. Captive aluminum lid. Adjustment ranges: 4-40°C; 30-90°C. Contact: SPST. 16A (2.6), 250VAC. Open or close on temperature rise. Maximum ambient temperature: 60°C (140°F). For more technical information ask 2PE2N6 thermostat technical data sheet.

Adjustable manual reset electronic room limiters

Applications: Equipment requesting a very strong resistance to water ingress. Housing: Protection class IP 66 upon EN 60529. Body in black PA66, fiber glass reinforced. Mechanical impact resistance: IK10. High UV resistance. Set point adjustment ranges: -35-35°C, 0-10°C, 4-40°C. Contact: SPST. 16A (2.6), 250VAC. Maximum ambient temperature: 60°C (140°F).

Thermostat with IP44 extra flat plastic enclosure, with pilot light. Rod temperature sensor. Stainless steel or Brass pocket. 1, 2 or 3 cable glands

Housing: Small height (Knob and cable glands not included), black PC-ABS, UL94V0. High impact and UV resistance. Electrical input: M16 cable glands. Positioning the cable glands allows variations in the mounting position Sensing element: Liquid filled bulb, located inside a backside mounted 304L stainless steel pocket. Rod length: 90, 230, 300 mm. Other length on request Electrical connections: On screw terminals. Contact: SPNC (open on temperature rise).

Immersion heater thermostats

Applications: Equipment requesting a very strong resistance to water ingress. Housing: Protection class IP66 upon EN 60529. Body in black PA66, fiber glass reinforced. Mechanical impact resistance: IK10. High UV resistance. Sensing element: Liquid expansion bulb and capillary. Set point adjustment ranges: 0-60°C; 0-90°C; 30-90°C; 30-110°C. Contact: SPDT. Electrical rating, inductive loads:

• Open on temperature rise contact (C-1): 2.6A 250V, 50 ~60Hz: >100000 cycles
• Close on temperature rise contact (C-2): 0.6A 250V 50 ~60Hz: >100000 cycles. Maximum ambient temperature: 60°C (140°F).

Electronic temperature control, remote sensor

Applications: temperature control with reduced differential, on-off action, in usual industrial applications and environments, not hazardous areas. Housing: Aluminum, IP65, IK10. Grey RAL7032 epoxy painting. Adjustment ranges: -35-35°C; 0-10°C; 4-40°C; 30-90°C; 30-110°C; 50- 200°C; 50-300°C; 100-400°C; 100-500°C. Sensing element: NTC or Pt100 probe. Cable input and output: two M20 cable glands, black PA66. Earthing: internal and external screw terminal. Contact: SPST. 16A (2.6), 250VAC. Electrical life: >100.000 cycles. Maximum ambient temperature: 60°C (140°F).

Pipe mounting thermostats

Applications: Pipes surface temperature control in usual industrial applications and environments, (No suitable for hazardous areas) Internal adjustment is convenient for products that must not be frequently adjusted. Housing: Aluminum, IP65. Set point adjustment: All types have an adjustable rotation limit system located inside the knob that allows reducing the set point adjustment span. Types with external adjustment have a transparent window. Contact: SPDT. Electrical rating: 20A 250V.

Manual reset electronic rod adjustable limiter, with high corrosion resistance IP66 housing, specifically designed for surface treatment baths, and highly basic or acid corrosive liquids or environments.

Main applications: Adjustable manual reset temperature limiter for surface treatment or corrosive liquid baths, sea water environment, livestock premises. Housing: Protection class IP 66 upon EN 60529. Electrical connections: Cable input/output by two M20 cable glands. Sensing element: NTC thermistor and microprocessor electronic circuit. Adjustment ranges: 4-40°C; 30-90°C; 30-110°C. SPNC, Open on temperature rise contact (C-1) 16A (2.6) 250VAC.

Rod thermostats

Housing: IP44, black PC-ABS, UL94V0. Cable input: One M20 cable gland. Set point adjustment: By printed knob for external adjustment models, by screw driver and printed dial on internal adjustment models. Sensing element: 304L stainless steel or nickel plated brass. Adjustment ranges: -35+35℃, 4-40℃, 30-90℃, 30-110℃. Rod length: 90, 230, 300 mm. Other length on request. Mounting: by the ½” BSPT pocket fitting. Contact: SPDT. Electrical rating: 20A 250V. Minimum storage temperature: -35℃ (-30°F). Maximum ambient temperature: 60℃ (140°F).

Electronic thermostats, rod sensor

Applications: Equipment requesting a very strong resistance to water ingress. Very small differential. Housing: Protection class IP 66 upon EN 60529. Body in black PA66, fiber glass reinforced. Mechanical impact resistance: IK10. High UV resistance. Set point adjustment ranges: 4-40°C; 30-90°C; 30-110°C. Sensing element: Dia. 5mm NTC sensor (10KOhms @25°C). Electrical connections: Inside, on screw terminal connection block. Contact: SPST. 16A (2.6), 250VAC. Minimum storage temperature: -35°C (-30°F). Maximum ambient temperature: 60°C (140°F).

Silicone boots for mounting fixed setting limiters or thermostats on flexible silicone heaters. Assembly by bonding or vulcanization.

Applications: They are designed to protect thermostats or temperature sensors against accidental contact or liquid ingress. Depending on the model, they can be filled with resin or simply be glued or vulcanized on their support, flexible or not. Color: black or orange depending on the model. Other colors available. Some of these boots comprise a degassing orifice and a “funnel” orifice for filling the silicone resin, which are cut after curing.

Probe sensor adjustable manual reset electronic limiters

Applications: Equipment requesting a very strong resistance to water ingress. The transparent cover allows visualizing the set point and the 2 pilot lights. Housing: Protection class IP 66 upon EN 60529. Body in black PA66, fiber glass reinforced. Set point adjustment ranges: -4-40°C; 30-90°C; 30-110°C. Sensing element: Dia. 5mm NTC sensor (10KOhms @25°C). Electrical connections: Inside, on screw terminal connection block. Contact: SPST. 16A (2.6), 250VAC. Maximum ambient temperature: 60°C.

Electronic thermostats, remote sensor, IP69K enclosure in PA66 and PC

Applications:

• Equipment requesting the highest resistance to water ingress.
• The transparent cover allows to visualize the set point and the 2 pilot lights.
• Very small differential. Housing: Protection class IP69K. Body in black PA66, fiber glass reinforced. IK10 shocks proof. Operation: Microprocessor electronic thermostat. Sensing element: NTC or Pt100 sensor, 2m standard cable length. Identification: Identification label on backside. Contact: SPST. 16A (2.6), 250VAC. Minimum storage temperature: -35°C (-30°F). Maximum ambient temperature: 60°C (140°F).

Electronic temperature control, rod

Applications: these rod thermostats electronic sensor can be installed inside pockets as immersion thermostats in pipelines and containers. Very low differential. On-Off action. Housing: aluminum, IP65, IK10. Grey RAL7032 epoxy painting. Adjustment ranges: -35-35°C; 0-10°C; 4-40°C; 30-90°C; 30-110°C; 50- 200°C; 50-300°C; 100-400°C; 100-500°C. Sensing element: NTC or Pt100 sensor located at the end of a dia.8mm stainless steel rod. Contact: SPST. 16A (2.6), 250VAC. Maximum ambient temperature: 60°C (140°F).

Adjustable high limit rob thermostats (bimetal expansion measurement, adjustable limiter 1X)

Housing: Aluminum, IP65, IK10. Grey RAL7032 epoxy painting. Temperature adjustment: Set point adjustable by arrow style knob, on °C printed dial. Action: High limit with manual reset and adjustable set point. Sensing element: Bimetal rod, stainless steel-Invar. Cable output: M16 cable gland, PA66. Identification: 20 x 40 mm stainless steel identification label, riveted. Contact: SPDT.

Bulb and capillary thermostats

Housing: IP44, black PC-ABS, fiberglass reinforced, UL94V0. Electrical input: One M20 cable gland. Set point adjustment: By printed knob for external adjustment models, by screw driver and printed dial on internal adjustment models. Temperature adjustment ranges: up to 500℃. Contact: SPDT. Electrical rating: 20A 250V. Minimum Storage temperature: -35℃ (-30°F). Maximum ambient temperature: 60℃ (140°F).

Rod thermostats, temperature control

Applications: Equipment requesting a very strong resistance to water ingress. Housing: Protection class IP 66 upon EN 60529. Body in black PA66, fiber glass reinforced. Mechanical impact resistance: IK10. High UV resistance. Set point adjustment ranges: 4-40°C; 0-60°C; 0-90°C; 30-90°C; 30-110°C. Contact: SPDT. Electrical rating, inductive loads:

• Open on temperature rise contact (C-1): 2.6A 250V, 50 ~60Hz: >100000 cycles.
• Close on temperature rise contact (C-2): 0.6A 250V, 50 ~60Hz: >100000 cycles. Minimum storage temperature: -35°C (-30°F). Maximum ambient temperature: 60°C (140°F).

3 pole rod thermostats, temperature control

Applications: These liquid expansion rod thermostats can be installed inside pockets as immersion thermostats in pipelines and containers, and to control temperature in air ducts.

• Internal adjustment is convenient for products that must not be frequently adjusted.
• Insensibility to strong vibrations. Housing: Aluminum, IP65, IK10. Grey RAL7032 epoxy painting. Stainless steel captive cover screws. Captive aluminum lid. Contact: 3PST. Electrical rating, resistive loads: 16A 250V, 50 ~60Hz: >100000 cycles, 20A 250V, 50 ~60Hz: ≥ 50000 cycles, 10A 400V, 50 ~60Hz: ≥ 50000 cycles. Maximum ambient temperature: 60°C (140°F).

Fixed setting manual reset bulb and capillary limiter

Applications: remote control in usual industrial applications and environments, not hazardous areas, for use as high limit safety. Sealed temperature set point. Housing: Aluminum, IP65, IK10. Grey RAL7032 epoxy painting. Set point calibration value: 80 ± 8°C, 90 ± 8°C, 110 ± 8°C, 130 ± 8°C, 150 ± 8°C, 175 ± 8°C, 220 ±11°C, 270 ±13°C, 300 ±15°C. Sensing element: Liquid expansion bulb and capillary. Electrical connections: Inside, on screw terminal connection block. Contact: Single pole, open on temperature rise (SPNC). Electrical rating: 16A res. 250/400VAC. Maximum ambient temperature: 60°C (140°F).

Manual reset electronic adjustable limiter, remote sensor

Applications: Temperature high limit, in usual industrial application and environment, non-hazardous areas. Housing: aluminum, IP65, IK10. Grey RAL7032 epoxy painting. Stainless steel captive cover screws. Captive aluminum lid. Operation: Microprocessor manual reset electronic limiter, with adjustable set point. Adjustment ranges: -35-35°C; 0-10°C; 4-40°C; 30-90°C; 30-110°C; 50- 200°C; 50-300°C; 100-400°C; 100-500°C. Sensing element: NTC or Pt100 sensor. Contact: SPST. 16A (2.6), 250VAC. Electrical life: >100.000 cycles. Maximum ambient temperature: 60°C (140°F).

Pockets

Various pockets:

• PBT pockets
• Nickel plated brass pockets
• 304 Stainless steel pockets
• Nickel plated brass pocket Pocket grommets Used to hold probes or electronic thermostat bulbs inside a pocket or a tube, while protecting them against the sharp edges of the tip.

Type Y08

Housing: IP54, 105 x 88 x 84.5 mm, black PC-ABS, UL94V0. High impact and UV resistance. Electrical input: one M20 cable gland. Temperature Adjustment: Inside, with °C printed knob. Sensing elements: Liquid filled bulbs, dia. 6mm, with output on backside, for mounting inside immersion heater pockets. Sensing element output lengths: 500mm (standard). Control thermostat contact: Open on temperature rise contact (C-1) 16A(2.6) 250VAC. Manual reset thermostat contact: Fail safe, open by temperature rise; 16A (2,6) 250V alt.

Thermostat with external knob adjustment, IP65, with two pilot lights, for industrial jacket and blanket heaters

Housing: IP65, fiberglass reinforced PA66, UL94V0. Electrical input: ISO M20 cable gland, Black PA66, IP67, for cables from 6 to 12 mm dia. Electrical output: 2 dia.4 mm holes, located on the backside face. Sensing element: Liquid filled bulb, located inside the brass cap. Adjustment ranges: 30-90°C, 30-110°C. Electrical connections: Inside, on 2.5mm² screw terminals connection block. Electrical rating: Open on temperature rise contact (C-1), 16A (2.6) 250VAC, >100.000 cycles. Maximum ambient temperature: 110°C.

Electronic thermostats for immersion heaters

Applications: Equipment requesting a very strong resistance to water ingress. The transparent cover allows to visualize the set point and the 2 pilot lights. Very small differential. Housing: Protection class IP 66 upon EN 60529. Body in black PA66, fiber glass reinforced. Mechanical impact resistance: IK10. High UV resistance. Set point adjustment ranges: 4-40°C; 30-90°C; 30-110°C. Electrical connections: Inside, on screw terminal connection block. Contact: SPNC. 16A (2.6), 250VAC. Maximum ambient temperature: 60°C (140°F).

Pigtail bulb room thermostats

Housing: IP44, black PC-ABS, fiber glass reinforced, UL94V0. Cable input: One M20 cable gland. Set point adjustment: By printed knob for external adjustment models, by screw driver and printed dial on internal adjustment models. Sensing element: Liquid filled bulb, coiled on the side of enclosure. Adjustment range: 4-40℃ (40-105°F). Mounting: Wall mounting. Contact: SPDT. Electrical rating: 20A 250V. Close on temperature rise contact (C-2).

Rod thermostats, with built-in pilot light and 2 or 3 M20 cable glands, stainless steel or nickel plated brass pocket

Applications: Ambient temperature control in professional premises where good protection against liquid splashes or dust is requested. Output with 2 or 3 cable glands, allowing direct connection of heat tracing cables for freeze protection. Housing: Reduced height, IP44, black PC-ABS fiberglass reinforced, UL94V0. Set point adjustment: By printed knob for external adjustment models, by screw driver and printed dial on internal adjustment models. Adjustment ranges: -35+35°C, 4-40°C, 30-90°C, 30-110°C. Contact: SPNC. Electrical rating: 20A 250V.

Fixed setting, immersion heater limiter, fail safe

Applications: Equipment requesting a very strong resistance to water ingress. Housing: Protection class IP 66 upon EN 60529. Body in black PA66, fiber glass reinforced. Mechanical impact resistance: IK10. High UV resistance. Action: Manual reset limiter, fail safe. Set point adjustment values: 80 ± 8°C, 90 ± 8°C, 110 ± 8°C. Electrical connections: Inside, on screw terminal connection block. Contact: Single pole, open on rise (SPNC). Electrical rating: 16A res. 250/400VAC. Maximum ambient temperature: 60°C (140°F).

Pipe mounting electronic temperature control

Application: Pipes surface temperature control in usual industrial applications and environments, when a low differential is requested (No suitable for hazardous areas). Housing: Aluminum, IP65, IK10. Grey RAL7032 epoxy painting. Stainless steel captive cover screws. Captive aluminum lid. Set point adjustment ranges: 4-40°C; 30-90°C. Action: temperature control, On-Off action. Sensing element: NTC sensor inside aluminum bracket in contact with the pipe surface. Cable input and output: two M20 cable glands, black PA66. Contact: SPST. 16A (2.6), 250VAC. Minimum storage temperature: -35°C (-30°F).

Fixed setting ambiance or antifreeze thermostat

Mounting: Wall, by external side brackets. Protection: IP65 (IK 03 On thermostat guard, IK10 the rest of the housing). Material: ABS-PC black glass-fiber reinforced. Output: 2 Cable glands M20, PA66, IP66. Electrical rating: Single pole, 8 to 16A 250V (100000 cycles). Contact style can be open on rise or close on rise. Customization: On request (MOQ apply). Connection: Built in 4mm² screw terminal block.

Pipe mounting 3 pole thermostats

Applications: Pipes surface temperature control in usual industrial applications and environments, to control 3 pole heating circuits. Housing: Aluminum, IP65, IK10. Grey RAL7032 epoxy painting. Stainless steel captive cover screws. Captive aluminum lid. Set point adjustment ranges: 0-60°C; 0-90°C; 30-90°C; 30-110°C. Action: Temperature control, On-Off action. Contact: 3PST. Electrical rating, resistive loads: 16A 250V, 50 ~60Hz: >100000 cycles, 20A 250V, 50 ~60Hz: ≥ 50000 cycles, 10A 400V, 50 ~60Hz: ≥ 50000 cycles. Maximum ambient temperature: 60°C (140°F).

Electronic room thermostats

Applications: equipment requesting a very strong resistance to water ingress. Very small differential. Housing: Protection class IP66 upon EN 60529. Body in black PA66, fiber glass reinforced. Mechanical impact resistance: IK10. High UV resistance. Sensing element: NTC probe, mounted on the top of the plastic housing. Set point adjustment ranges: -35-35°C, 0-10°C, 4-40°C. Contact: SPST. 16A (2.6), 250VAC. Maximum ambient temperature: 60°C (140°F).

“Pigtail”bulb room thermostats

Applications: Equipment requesting a very strong resistance to water ingress. Housing: Protection class IP 66 upon EN 60529. Body in black PA66, fiber glass reinforced. Mechanical impact resistance: IK10. High UV resistance. Sensing element: Liquid filled “pigtail” stainless steel bulb. Set point adjustment ranges: 4-40°C. Contact: SPDT. Electrical rating, resistive loads:

• Open on temperature rise contact (C-1).
• Close on temperature rise contact (C-2). Maximum ambient temperature: 60°C.

“Pigtail”bulb room thermostat, with built-in pilot light and 2 or 3 M20 cable glands

Applications: Ambient temperature control in professional premises where good protection against liquid splashes or dust is requested. Output with 2 or 3 cable glands, allowing direct connection of heat tracing cables for freeze protection. Main features: Housing: Reduced height, IP44, black PC-ABS fiberglass reinforced, UL94V0. Set point adjustment: By printed knob for external adjustment models, by screw driver and printed dial on internal adjustment models. Adjustment ranges: 4-40°C (40-105°F). Contact: SPNC (open on temperature rise). Pilot light: Neon, 230V, standard in red, parallel connection on the load. Electrical rating: 20A 250V.

Low differential electronic rod thermostat, with high corrosion resistance housing, specifically designed for surface treatment baths, and highly basic or acid corrosive liquids or environments

Main applications: Precise temperature control for surface treatment or corrosive liquid baths, sea water environment, livestock premises. Housing: Protection class IP 66 upon EN 60529. Adjustment ranges: 4-40°C; 30-90°C; 30-110°C. Electrical contact: SPNC, Open on temperature rise contact (C-1) 16A (2.6) 250VAC.

“Pigtail”bulb room thermostats, with 2 built-in pilot lights

Housing: PC-ABS, fiber glass reinforced, UL94V0. High impact and UV resistance, with waterproof gasket on thermostat shaft for external adjustment types. Internal adjustment types have a PC transparent cover, to visualize the pilot lights and the set point adjustment. Adjustment ranges: -35+35°C, 4-40°C. Pilot lights: Allow to visualize the power supply and thermostat contact position (230V Phase and Neutral power supply is mandatory for pilot lights). Contact: SPNC (open on temperature rise). Electrical rating: 20A 250V.

Electrical cabinet ambient temperature thermostats, Din Rail mounting.

Main use: These models have been designed to control the temperature inside electrical cabinets, being mounted on their DIN rail. Temperature ranges: -10+20°C; -10+50°C; 0-60°C; 5-35°C; 20+80°C. Sensing element: bimetal. Contact type: snap-action contact, open or close on temperature rise, 10(2)A 250VAC, 15(2)A 120VAC. Electrical life: > 10.000 cycles at rated values. Contact resistance: < 10mOhm. Electrical connection: 3 screw terminals, for 1.5 mm² wires. Operating temperature range: - 20 to + 80°C. Ingress protection: IP30.

Digital display electronic controller, ON-OFF action, IP69K and IK10 enclosure, wall mounting.

This ultra-compact electronic temperature controller was designed to provide the simplest and instinctive end user setting. Enclosure: 100 x 56 x 63 mm. In black PA66, impact resistant (IK10), UV resistant, IP69K. Power supply: 220 to 250V, 50Hz or 60Hz. Relay output: Single pole, 16A250V res. Ambient: -20 + 60°C, 10-90% RH. Power: <4W. Electrical connections: -Power input for electronic board: Neutral, phase, ground, with 2.5 mm² terminals. -Relay input and output: 2.5 mm² terminals. -Temperature sensor: three 2.5 mm² screw terminal.

IP54 commercial housing

Type Y06 and Y07 Housing: IP54, 105 x 88 x 58.5 mm, black PC-ABS, UL94V0. High impact and UV resistance. Electrical input: two M20 cable glands. Temperature Adjustment: Inside, with °C printed knob. Sensing element: Liquid filled bulb. Electrical connections: screw terminals. Mounting: -Y06: by the ½”BSPT (taped) brass pocket fitting -Y07: by the ½”BSPP (parallel) brass pocket fitting Control thermostat contact: SPDT. Manual reset thermostat contact: Failsafe, open by temperature rise; 16A (2,6) 250V alt.

Fixed setting manual reset limiter, rod

These rod manual reset limiters can be installed inside pockets as immersion thermostats in pipelines a liquid expansion and containers. Housing: Aluminum, IP65, IK10. Grey RAL7032 epoxy painting. Action: Fail safe manual reset high temperature limit. Set point calibration value: 80±8°C, 90±8°C, 110±8°C, 130±8°C, 150±8°C, 175±8°C, 220±11°C, 270±13°C, 300±15°C. Electrical connections: Inside, on screw terminal connection block. Contact: Single pole, open on temperature rise (SPNC). Electrical rating: 16A res. 250/400VAC. Maximum ambient temperature: 60°C.

Adjustable electronic manual reset limiters for immersion heaters

Applications: Equipment requesting a very strong resistance to water ingress. Housing: Protection class IP 66 upon EN 60529. Body in black PA66, fiber glass reinforced. Mechanical impact resistance: IK10. High UV resistance. Set point adjustment ranges: 4-40°C; 30-90°C; 30-110°C. Sensing element: The 5x 30mm NTC sensor (10KOhms @25°C). Electrical connections: Inside, on screw terminal connection block. Contact: SPNC. 16A (2.6), 250VAC. Maximum ambient temperature: 60°C (140°F).

Bulb and capillary thermostats, with built-in pilot light and 2 or 3 M20 cable glands

Applications: Distance temperature control in professional premises where good protection against liquid splashes or dust is requested. Output with 2 or 3 cable glands. Housing: Reduced height, IP44, black PC-ABS fiberglass reinforced, UL94V0. Set point adjustment: By knob for external adjustment models, by screw driver and printed dial on internal adjustment models. Temperature adjustment ranges: up to 500°C. Capillary length: 1.5m. Pilot light: Neon, 230V, standard in red, parallel connection on the load. Contact: SPNC. Electrical rating: 20A 250V.

Remote sensor adjustable manual reset electronic limiters

Applications:

• Equipment requesting a very strong resistance to water ingress.
• Use of electronic sensor allows measurement at long distances, which is not possible with bulb and capillary types.
• Manual reset allows the use as high temperature alarm. Housing: Protection class IP 66 upon EN 60529. Body in black PA66, fiber glass reinforced. Sensing element: NTC or Pt100 sensor. Set point adjustment ranges: -35-35°C; 0-10°C; 4-40°C; 30-90°C; 30-110°C; 50-200°C; 50-300°C; 100-400°; 100-500°C. Contact: SPST. 16A (2.6), 250VAC. Maximum ambient temperature: 60°C (140°F).

Fixed setting manual reset limiter, pipe mounting

Applications: these liquid expansion pipe surface manual reset limiters can be installed inside pockets as immersion thermostats in pipelines and containers, and as high limit safety in air ducts. Housing: Aluminum, IP65, IK10. Grey RAL7032 epoxy painting. Set point calibration value: 80±8°C, 90±8°C, 110±8°C. Electrical connections: Inside, on screw terminal connection block. Contact: Single pole, open on rise (SPNC). Electrical rating: 16A res. 250/400VAC. Maximum ambient temperature: 60°C (140°F).

Bulb and capillary thermostats

Applications: Remote control in usual industrial applications and environments, not hazardous areas. Internal adjustment is convenient for products that must not be frequently adjusted. Set point adjustment ranges: up to 500° C. Set point adjustment: All types have an adjustable rotation limit system located inside the knob that allows reducing the set point adjustment span. Types with external adjustment have a transparent window. Contact: SPDT. Electrical rating: 20A 250V.

Miniature room temperature thermostats wall mounting, home appliance style

Main use: These models have been designed to control electrical equipment temperature. They are designed for wall mounting with 2 backside screws. Temperature ranges: -10+50°C; 0-60°C; 20+80°C. Sensing element: bimetal. Contact type: snap-action contact, open or close on temperature rise, 10(2)A 250VAC, 15(2)A 120VAC. Electrical life: > 100 000 cycles at rated values. Contact resistance: < 10mOhm. Electrical connection: 4 screw terminals, for 1.5 mm² wires. Operating temperature range: - 20 to + 80°C. Ingress protection: IP30.

Rod thermostats, temperature control

Applications: These liquid expansion rod thermostats can be installed inside pockets as immersion thermostats in pipelines and containers, and for monitoring temperature in air ducts, in usual industrial applications and environments. (Not suitable for hazardous areas).

• Internal adjustment is convenient for products that must not be frequently adjusted.
• Insensibility to strong vibrations. Housing: Aluminum, IP65. Set point adjustment ranges: up to 500° C. Contact: SPDT. Electrical rating: 20A 250V.

Housing: IP54, 105 x 88 x 58.5 mm. black PC-ABS, UL94V0. High impact and UV resistance.

Electrical input: Two M20 cable glands. Temperature Adjustment: Inside, with °C printed knob. Sensing elements: Liquid filled bulbs, dia.6mm, with output on side of housing, for distance measurement. Capillary lengths: 900 mm. Electrical connections: screw terminals. Manual reset thermostat contact: Fail safe, open by temperature rise; 16A (2,6) 250V alt.

“Pigtail” bulb room thermostats

Applications:

• Wall mounting for indoor or outdoor temperature control of cold rooms.
• Temperature control of industrial or commercial premises.
• Outdoor temperature control of antifreeze heaters.
• Green houses and livestock stables temperature control. Set point adjustment ranges: 4 - 40°C. Set point adjustment: All types have an adjustable rotation limit system located inside the knob that allows reducing the set point adjustment span. Types with external adjustment have a transparent window. Contact: SPDT. Electrical rating: 20A 250V.

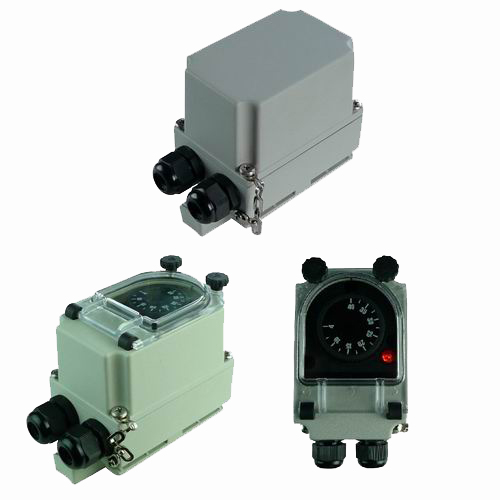

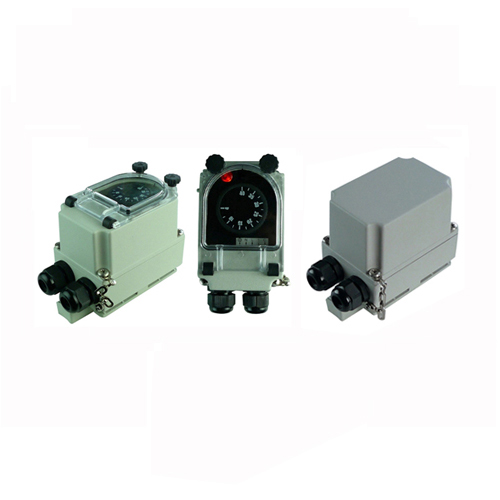

Bulb and capillary thermostats, with 2 built-in pilot lights

Housing: PC-ABS, fiberglass reinforced, UL94V0. With waterproof gasket on thermostat shaft for external adjustment types. Internal adjustment types have a PC transparent cover, to visualize the pilot lights and the set point adjustment. Cable input: M20 cable gland. Temperature adjustment ranges: -35+35°C, 4-40°C, 30-90°C, 30-110°C, 50-200°C, 50-300°C, 100-400°C, 100-500°C. Capillary length: 1.5 m. Pilot lights: Allow to visualize the power supply and thermostat contact position. Contact: SPNC (open on temperature rise). Electrical rating: 20A 250V.

Manual reset electronic room adjustable limiter

Applications: - Wall mounting for indoor or outdoor high temperature alarm of cold rooms.

• High temperature alarm of industrial or commercial premises.
• Outdoor temperature control of antifreeze heaters.
• High temperature alarm of green houses and livestock stables. Housing: Aluminum, IP65, IK10. Sensing element: NTC probe. Contact: SPST. 16A (2.6), 250VAC. Electrical life: >100.000 cycles. Minimum storage temperature: -35°C (-30°F). Maximum ambient temperature: 60°C (140°F).

Fixed setting manual reset limiter, pipe mounting

Applications: these liquid expansion pipe surface manual reset limiters can be installed inside pockets as immersion thermostats in pipelines and containers, and as high limit safety in air ducts. Housing: Aluminum, IP65, IK10. Grey RAL7032 epoxy painting. Set point calibration value: 80±8°C, 90±8°C, 110±8°C. Electrical connections: Inside, on screw terminal connection block. Contact: Single pole, open on rise (SPNC). Electrical rating: 16A res. 250/400VAC. Maximum ambient temperature: 60°C (140°F).

3 Pole bulb and capillary thermostats

Applications: Remote control in usual industrial application and environment, not hazardous areas, when it is requested to control a 3 phases heating circuit. Housing: Aluminum, IP65, IK10. Grey RAL7032 epoxy painting. Stainless steel captive cover screws. Captive aluminum lid. Contact: 3PST, open on temperature rise. Electrical rating, resistive loads: 16A 250V, 50 ~60Hz: >100000 cycles, 20A 250V, 50 ~60Hz: ≥ 50000 cycles, 10A 400V, 50 ~60Hz: ≥ 50000 cycles. Minimum Storage temperature: -35°C (-30°F). Maximum ambient temperature: 60°C (140°F).

Electronic thermostats, remote sensor, IP66 enclosure in PA66 and PC.

Applications: Equipment requesting a very strong resistance to water ingress. Very small differential. Housing: Protection class IP 66 upon EN 60529. Body in black PA66, fiber glass reinforced. Mechanical impact resistance: IK10. High UV resistance. Sensing element: NTC or Pt100 sensor. Set point adjustment ranges: -35-35°C; 0-10°C; 4-40°C; 30-90°C; 30-110°C; 50-200°C; 50-300°C; 100-400°C; 100-500°C. Contact: SPST. 16A (2.6), 250VAC. Maximum ambient temperature: 60°C (140°F).

Electronic room thermostats

Housing: Aluminum, IP65, IK10. Grey RAL7032 epoxy painting. Stainless steel captive cover screws. Captive aluminum lid. Adjustment ranges: -35-35°C, 0-10°C, 4-40°C. Sensing element: NTC probe, mounted on the side of plastic housing. Cable input and output: Two M20 cable glands, Black PA66. 2 phase power supply (Line + Neutral, 220250V, 50Hz60Hz) are mandatory. Earthing: Internal and external screw terminal. Contact: SPST. 16A (2.6), 250VAC. Minimum storage temperature: -35°C (-30°F). Maximum ambient temperature: 60°C (140°F).

Rob thermostats (bimetal expansion measurement, thermostat 1R, 1U)

Housing: Aluminum, IP65, IK10. Grey RAL7032 epoxy painting. Temperature adjustment: Set point adjustable by arrow style knob, on °C printed dial. Action: temperature control. Sensing element: Bimetal rod, stainless steel-Invar. Cable output: M16 cable gland, PA66. Identification: 20 x 40 mm stainless steel identification label, riveted. Contact: SPDT.

Thermostat with internal adjustment, IP65, with two pilot lights, for surface mounting on industrial jacket heaters, blanket heaters and silicone heaters

Housing: IP65, fiberglass reinforced PA66, UL94V0. High impact and UV resistance. Electrical input: ISO M20 cable gland, Black PA66, IP67. Electrical output: 2 dia.4 mm holes, located on the backside face. Sensing element: Liquid filled bulb, located inside the brass cap. Adjustment ranges: 30-90°C (85-195°F), 30-110°C (85-230°F). Electrical rating: Open on temperature rise contact (C-1), 16A (2.6) 250VAC, >100.000 cycles. Maximum ambient temperature: 110°C (230°F).
