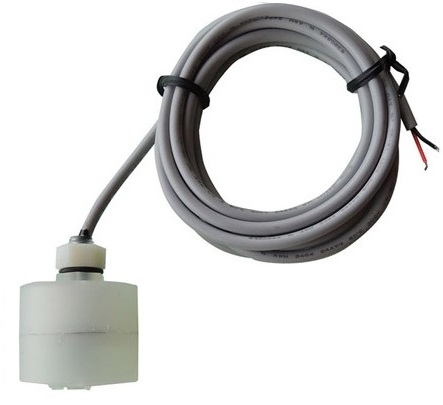

Type: DM

Vertical mounting, reed switch contact, polypropylene stem with M8 thread, cable output, dia. 25 x 15mm hollow polypropylene float.

Use: low voltage circuits.
Main applications: steam generators, coffee machines, vending machines, air conditioning pumps, dehumidifiers. Most application in water level control.
Float material: hollow polypropylene.
Contact configuration: normally closed when float is down on the stem. It opens when float goes up to the wiring side. Upsetting the float changes the contact configuration into normally open.
Electrical rating:
Low voltage type: maximum power 10 W (VA), max 0.5Amp, max voltage 110VAC.
230VAC type: max power 40 W (VA), max 1Amp.

Type: DM

Vertical mounting, reed switch contact, polypropylene stem with M8 thread, dia. 29 x 16.4mm hollow polypropylene float, cable output, for near bottom level detection.

Use: low voltage circuits.
Main applications: steam generators, coffee machines, vending machines, air conditioning pumps, dehumidifiers. Float material: hollow polypropylene. Contact configuration: normally closed when float is down on the stem. It opens when float goes up to the wiring side. Upsetting the float changes the contact configuration into normally open.
Electrical rating: Low voltage type: maximum power 10 W (VA), max 0.5Amp, max voltage 110VAC.
230VAC type: max power 40 W (VA), max 1Amp.

Type: DMF4

Miniature vertical level switch with waterproof connection box and 16A 230V SPDT built-in relay

Main applications: Water level control in vending machines, pumps, dehumidifiers, aquariums, swimming pool skimmers, electrochemical surface treatment tanks. The built-in 16 230V power relay allows the direct control of 230V equipment. The pilot light displays the output contact position.

Rating: 16A 250V, resistive load, 100.000 cycles. SPDT. Use in inductive circuits is possible, at reduced amps.
Connection box : Black PA66 box, 70x33x33mm, IP69K, with 2.5mm² 5 way screw terminals, wire outputs by M16 cable gland.

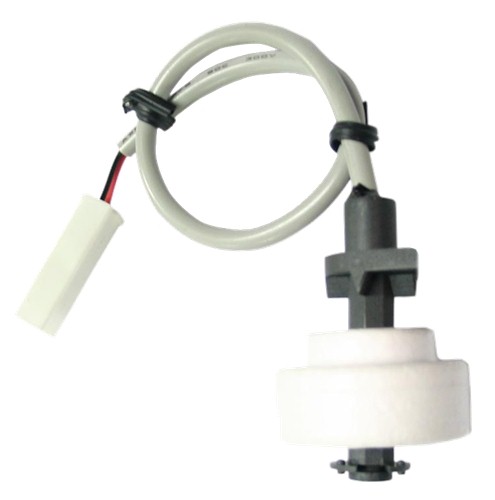

Type: DM

Vertical mounting, reed switch contact, polypropylene stem with M8 thread, dia. 29 x 16.4mm EPS foam float,

cable output, for near bottom level detection.

Use: low voltage circuits.
Main applications: vending machines, air conditioning pumps, dehumidifiers.
Stem material: polypropylene.
Float material: EPS foam with skin effect surface to avoid water absorption.
Electrical rating: Low voltage type: maximum power 10 W (VA), max 0.5Amp, max voltage 110VAC.
230VAC type: max power 40 W (VA), max 1Amp Values for resistive circuit. For inductive or capacitive loads, a contact protection circuit must be used.
Maximum pressure: 1 bar (15 PSI).

Type: DM

Vertical mounting, reed switch contact, polypropylene stem, dia. 20 x 16.4mm EPS foam float, cable output, side mounting bracket.

Use: low voltage circuits.
Main applications: vending machines, air conditioning pumps, dehumidifiers.
Stem material: polypropylene.
Float material: EPS foam with skin effect surface to avoid water absorption.
Electrical rating: Low voltage type: maximum power 10 W (VA), max 0.5Amp, max voltage 110VAC.
230VAC type: max power 40 W (VA), max 1Amp Values for resistive circuit.
Ambient temperature: -20+65°C.
Maximum pressure: 1 bar (15 PSI).

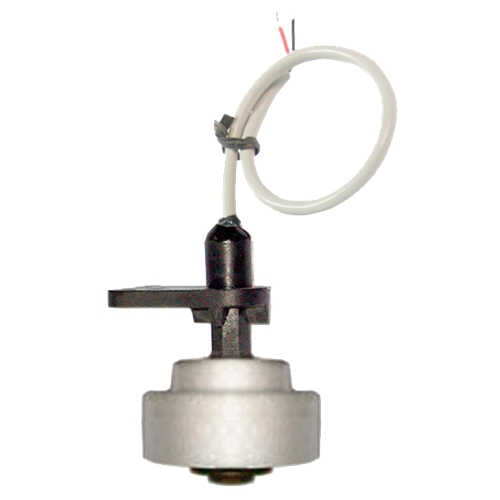

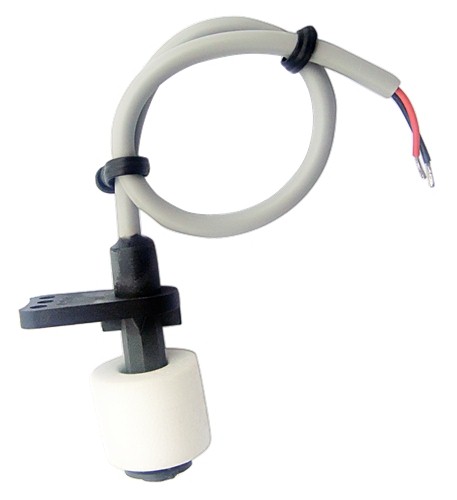

Type: DM

Vertical mounting, reed switch contact, polypropylene stem with side mounting bracket,dia. 29 x 16.4 mm EPS foam float, cable output, for near bottom detection

Use: low voltage circuits.
Main applications: vending machines, air conditioning pumps, dehumidifiers. Stem material: polypropylene.
Float material: EPS foam with skin effect surface to avoid wa¬ter absorption.
Electrical rating: Low voltage type: maximum power 10 W (VA), max 0.5Amp, max voltage 110VAC.
230VAC type: max power 40 W (VA), max 1Amp Values for re¬sistive circuit.For inductive or capacitive loads, a contact pro¬tection circuit must be used.
Maximum pressure: 1 bar (15 PSI).

Type: DM

Vertical mounting, reed switch contact, polypropylene stem with M8 thread, dia. 25 x 15 mm hollow polypropylene float, cable output, Dia 34 mm slosh shield.

Use: low voltage circuits.
Main applications: liquids with waves or turbulences, spas, swimming pools.
Stem material: polypropylene.
Float material: hollow polypropylene.
Electrical rating: Low voltage type: maximum power 10 W (VA), max 0.5Amp, max voltage 110VAC.
230VAC type: max power 40 W (VA), max 1Amp.
Contact resistance: 150mOhms maxi.
Maximum pressure: 1 bar (15 PSI).

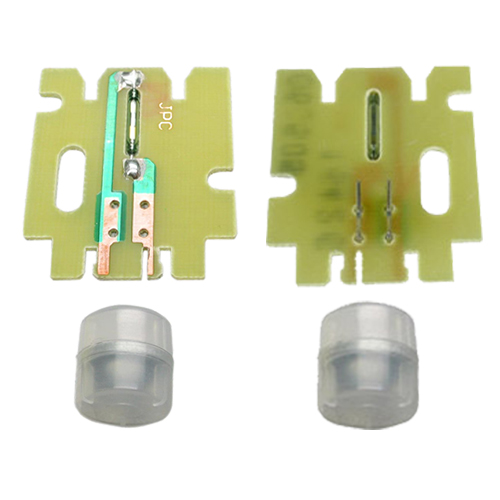

Type: DM

Vertical mounting, reed switch contact, split float and circuit, hollow PP float, detection through the tank wall.

Use: low voltage circuits.
Main applications: steam generators, coffee machines, vending machines, air conditioning pumps, dehumidifiers, tanks.
Float material: hollow polypropylene.
Electrical rating: Low voltage type: maximum power 10 W (VA), max 0.4Amp, max voltage 110VAC.
230VAC type: max power 10 W (VA), max 0.5Amp.
Contact resistance: 150mOhms maxi.
Maximum pressure: 1 bar (15 PSI).

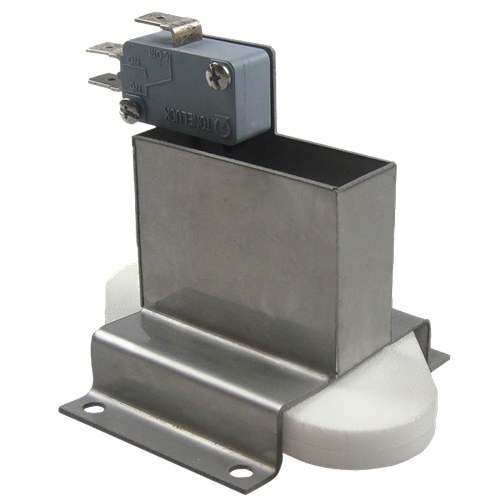

Type: DW

Bottom mounting, micro switch contact, EPS foam float, appliances flooding detection.

Use: 250 VAC circuits.
Main applications: overflow, leaks or flooding detection on electrical appliances, washing machines, electrical equipment and cabinets protection.
Float material: EPS foam.
Frame material: stainless steel.
Contact configuration: SPDT snap action micro-switch.
Rating: 1/4HP, 6(1) A 240V (UL, CSA VDE switch).
Contact resistance: 50mOhms maxi.
Ambient temperature: 0+65°C.
Maximum pressure: atmospheric.

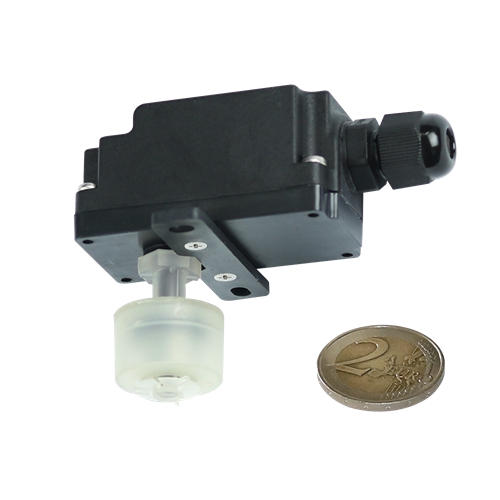

Type: DMF1-DMF4

Miniature vertical level switch with waterproof connection box

Main applications: Water level control in vending machines, pumps, dehumidifiers, aquariums, swimming pool skimmers, electrochemical surface treatment tanks.
Stem material: Polypropylene.
Float material: Hollow polypropylene.
Contact configuration: Normally closed when float is down on the stem.
Low voltage type: Maximum power 10 W (VA), max 0.5Amp, max voltage 110VAC.
230VAC type: Maximum power 40 W (VA), max 1Amp.
Contact resistance: 150milli-Ohms maxi.
Connection box: Black PA66 box, 61x33x30mm, IP69K, with 2.5mm² 3 way screw terminals.
Ambient temperature: -20 + 80°C.

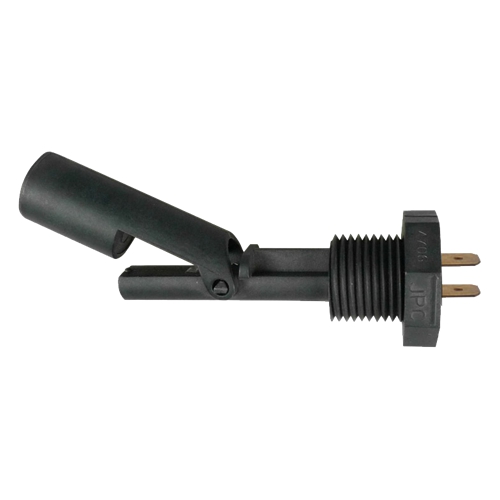

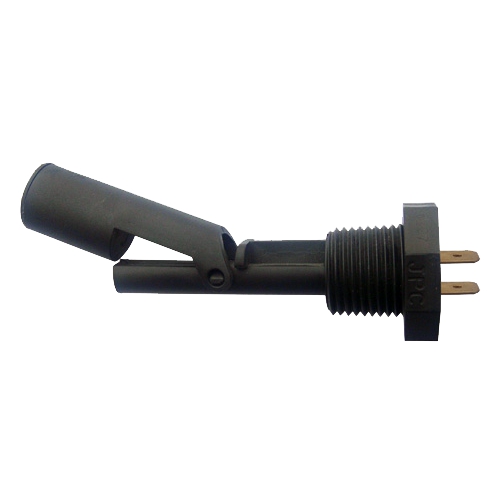

Type: DT

Horizontal mounting, reed switch contact, PBT stem, hollow PBT float, 6.35 x 0.8 QC terminals, ½” BSPP thread.

Use: low voltage circuits.
Main applications: steam generators, coffee machines, vending machines, air conditioning pumps, dehumidifiers, tanks.
Stem material: PBT.
Electrical rating: Low voltage type: maximum power 10 W (VA), max 0.5Amp, max voltage 110VAC. 230VAC type: max power 40 W (VA), max 1Amp. Contact resistance: 150mOhms maxi.
Ambient temperature: -20 + 80°C.
Maximum pressure: 1 bar (15 PSI).
Option: electrical rating 70W, 1A, 250V.

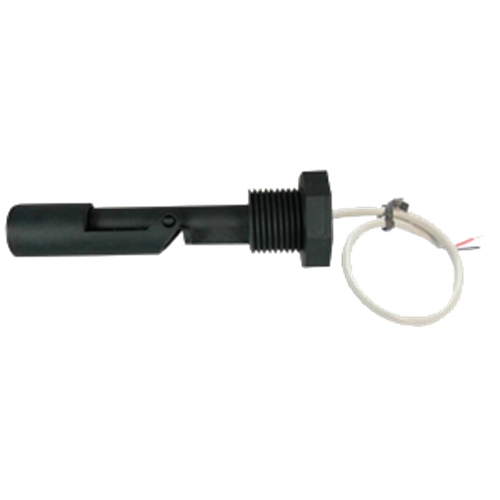

Type: DT

Horizontal mounting, reed switch contact, PBT stem, hollow PBT float,cable output, ½” BSPP thread.

Use: low voltage circuits.
Float material: hollow PBT.
Electrical rating: Low voltage type: maximum power 10 W (VA), max 0.5Amp, max voltage 110VAC.
230VAC type: max power 40 W (VA), max 1Amp Values for resistive circuit.
Contact resistance: 150mOhms maxi (wires not included).
Ambient temperature: -20+80°C.
Maximum pressure: 1 bar (15 PSI).

Type: DT

Horizontal mounting, reed switch contact, PBT stem, hollow PBT float, 6.35 x 0.8 QC terminals, ½” NPT thread.

Use: low voltage circuits.
Stem material: PBT.
Float material: hollow PBT.
Electrical rating: Low voltage type: maximum power 10 W (VA), max 0.5Amp, max voltage 110VAC.
230VAC type: max power 40 W (VA), max 1Amp.
Contact resistance: 150mOhms maxi.
Ambient temperature: -20 + 80°C.
Maximum pressure: 1 bar (15 PSI).
Option: electrical rating 70W, 1A, 250VAC.
